MenaceRC Bandicoot 5.8Ghz Linear Receiver Patch Antenna

£8.95
£8.95
ON SALE SOLD OUT
Shipping calculated at checkout.

This particular item has been opened to take our product photos. The box has been opened but otherwise is in brand new condition. Only one available at this price - when it's gone it's gone.

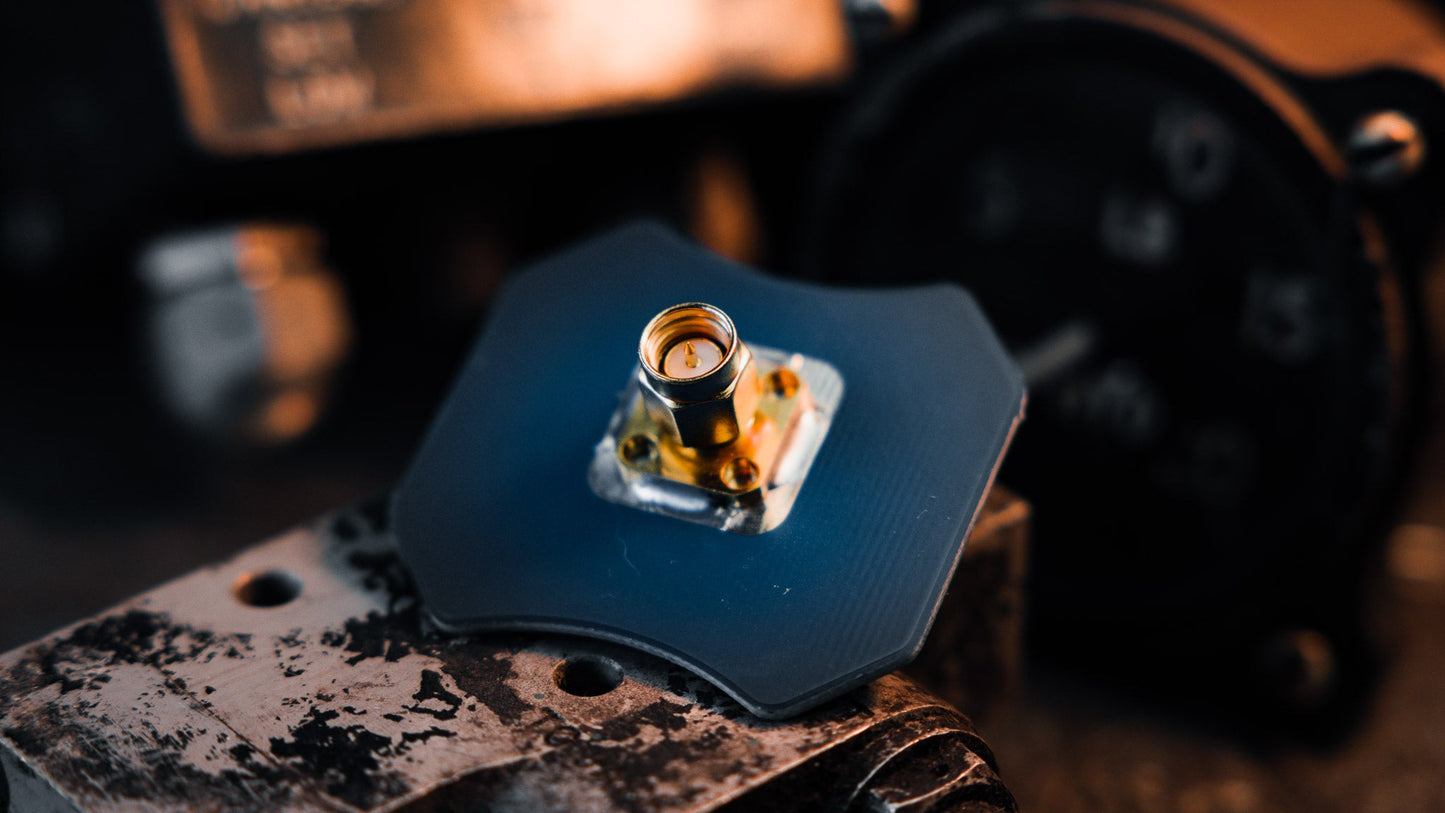

The Bandicoot antenna is a small linear receiving patch designed to work with the linear whip antennas found on Tiny Whoops, other micro drones and even ultra light 5" builds rocking something like the TBS Linear Antenna

If you are using a linear whip antenna on your micro quad and using a circular antenna to receive you would be experiencing a 3db loss due to the mixed polarisation signals, for each 3db drop in signal that is a half in power so effectively your 25mW vtx will only be seen as transmitting 12.5mW.
Get your 3db back - Use the Menace Bandicoot!

Features:

  • Linear Polarised
  • Linear Whip and Vee compatible
  • Compact low profile design on your goggles
  • Designed for goggles or base stations

Specs:

  • Frequency: 5800 Mhz
  • Bandwidth 220 Mhz
  • Gain: 6.5 dBi
  • Beam Width: 150° at -7db, 120° at -5db, 90° at -3db
  • Linear Polarised
  • SMA Connector (Fits Fatshark Goggles)
  • Dimensions: 45mm x 41mm x 16mm
  • Weight: 11grams
