Five33 AXII 2 U.FL Antenna (RHCP)

Five33 have teamed up with Lumenier to bring us their take on the hugely popular Axii antenna.

The AXII 2 is one of the smallest and lightest circular polarised antennas on the market, perfect for both lightweight racing builds or freestyle quads. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic.

Features:

• 2.2dBic Gain
• Wide Bandwidth (5.3-6.2GHz)
• Clean Signal And Rejection to Interference
• Durable Injection Molded Housing
• Works great as both a transmitting or receiving antenna
• Compatible with other styles of 5.8GHz RHCP antennas
• Virtually Perfect Axial Ratio

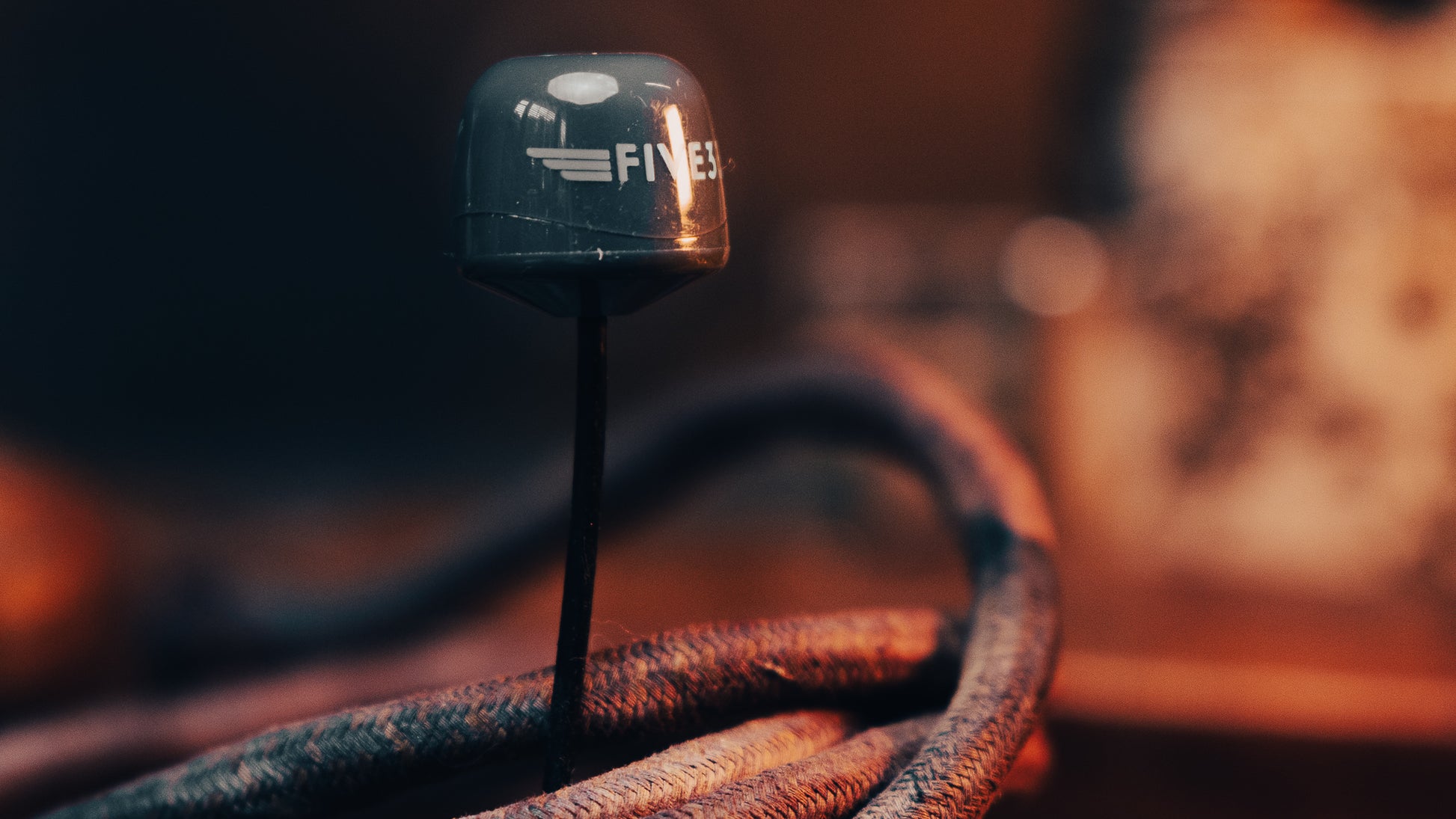

Antennas take a lot of abuse when put onto a quad so the AXII 2’s robust antenna housing is made out of injected moulded polycarbonate, significantly improving durability compared to the original AXII housing.

Specs:

• Gain: 2.2dbic
• Axial ratio: 1.0 (near perfect)
• Bandwidth: 5.3GHz-6.2GHz
• Radiation Efficiency: 98%
• SWR: <=1.5:1
• Weight: 3.5g
• Size: 96mm x 17mm
• Cable: Flexible RG178
• Cable Length: 73mm

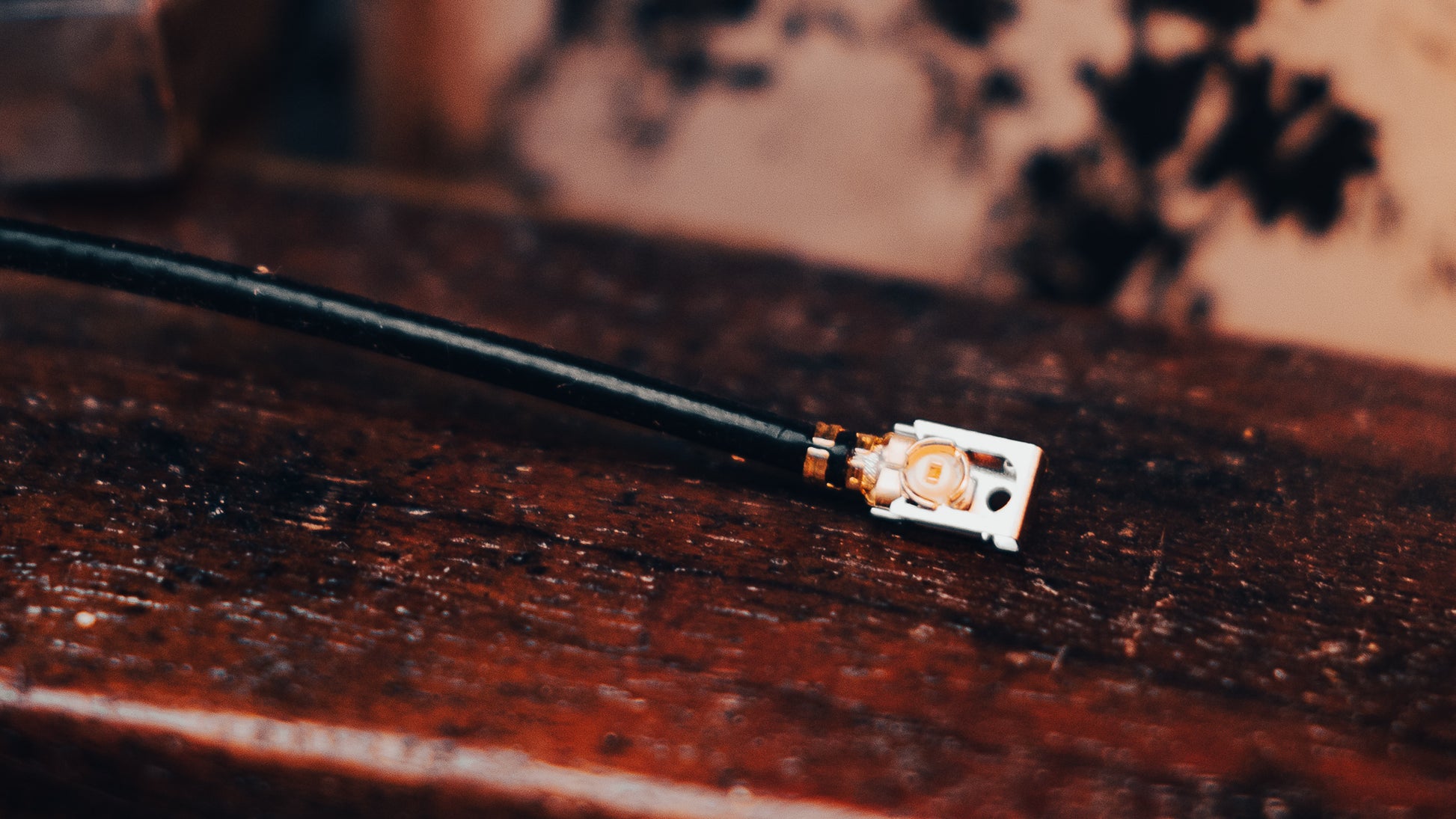

• Connector: Locking U.FL




Includes

• 1x Lumenier AXII 2 U.FL 5.8GHz Antenna
