ImmersionRC Ghost Atto Duo Receiver

For racers on the bleeding edge, every little helps. Miss a single control packet at 160km/h (even at 222Hz) and a racing drone moves > 40cm (> 15 inches) without control.

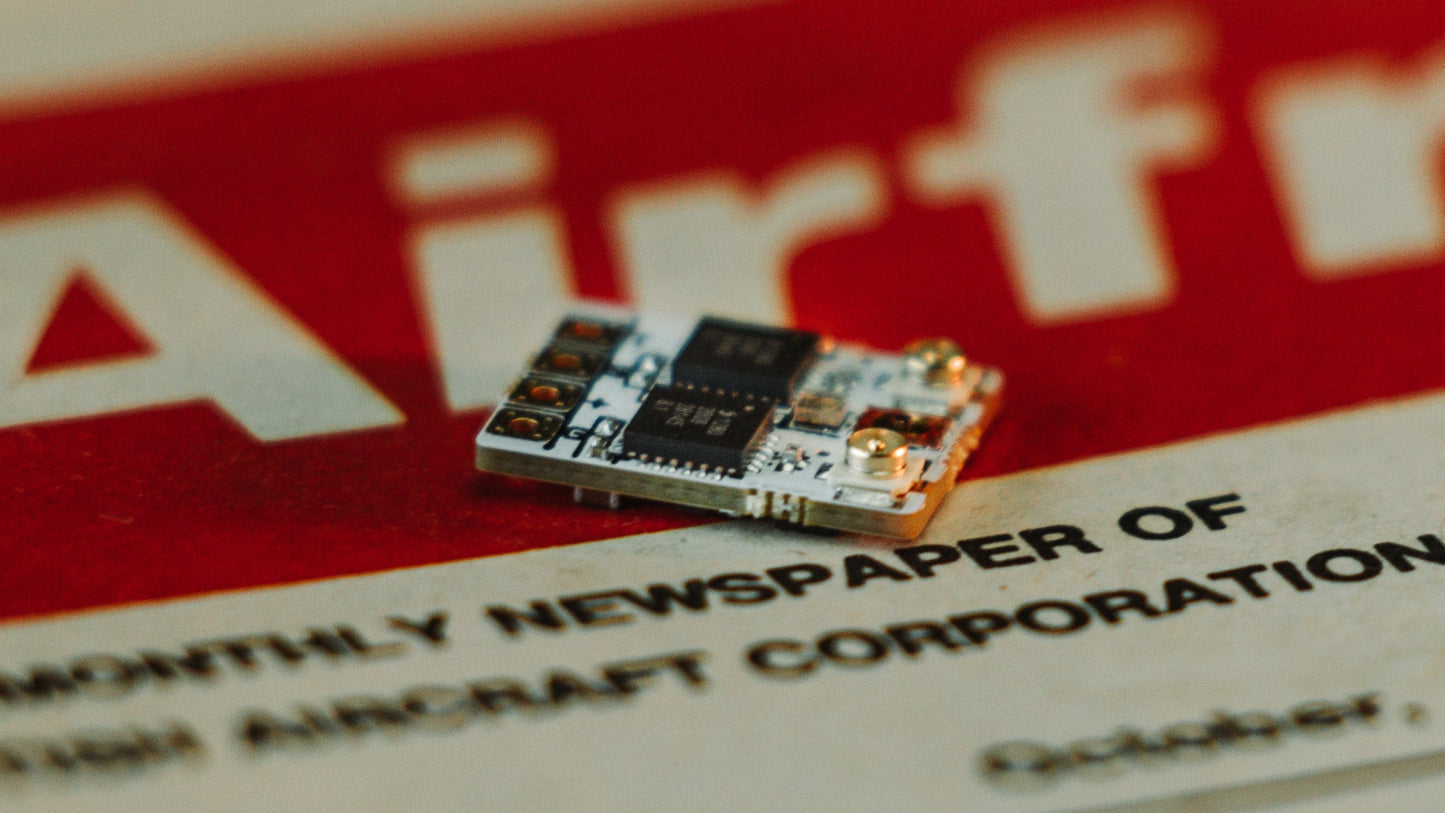

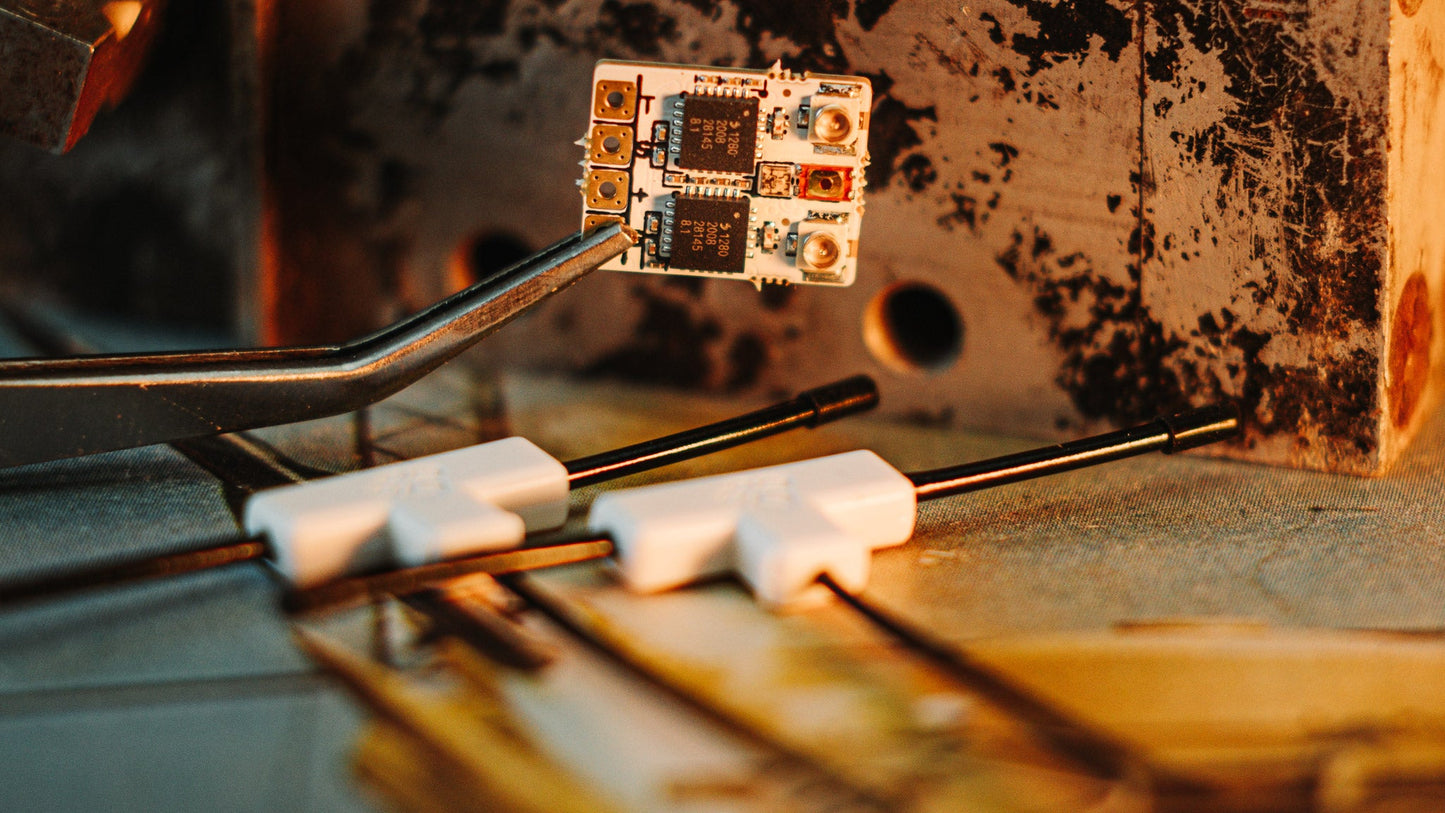

The Atto Duo is a high-end receiver for drone racing which combines two independent receiver channels, and twin antennas, to dramatically reduce lost packets during racing.

Nothing comes even close!

A Growing Family

The Atto was the first member of the Ghost Receiver family. Small enough for most applications, and best-in-class performance.

The tiny Zepto, 10mm x 10mm, and weighing in at 0.31g, is ideal for micro-class quads, including Cine-Whoops where every gram matters. Same mounting hole pattern for installation on any of the Proton Pack boards.

The new Atto Duo is the same size and weight as the Atto.

Proton Pack Compatible

If you are going to name your product "Ghost" you've got to get at least one Ghostbusters reference in! By far the cleanest way to mount the essential Video Transmitter, and Ghost Receiver, on a 30×30, 20×20, or Whoop/Toothpick frame.

Single-sided PCB, with low-profile mounting of transmitter and receiver, which doubles as heat-sink for the video transmitter.

Why Full Diversity?

When racing, the control link, connecting the pilot’s brain to the drone, is absolutely critical.

Standard receivers, using single antennas, or dual-antenna setups using ‘Antenna Diversity’ drop performance when antennas are blocked by frames or batteries, or when the nulls in the antenna radiation pattern cause signal loss.

True diversity receivers use two completely independent receiver chains to greatly improve performance. Every control packet gets two chances to be received correctly.

Long Range FPV, and UAV Benefits

For long range FPV, and UAV use, where slow movement of an aircraft can result in significant time spent in antenna nulls, the Atto Duo is exactly what is required.

Link Margins are significantly improved with a full diversity link, and with improved link margin comes extended range, or increased security at shorter range.

Specs:

2.4GHz ISM Band
Tiny 15 x 12mm, and 0.61g
Two fully independent Ghost receivers
Crazy Race Performance, 222.22Hz updates (500Hz Ready)
~4ms End to End Latency (2ms ready), with OpenTx Integration
Fully supported by Betaflight with GHST driver
