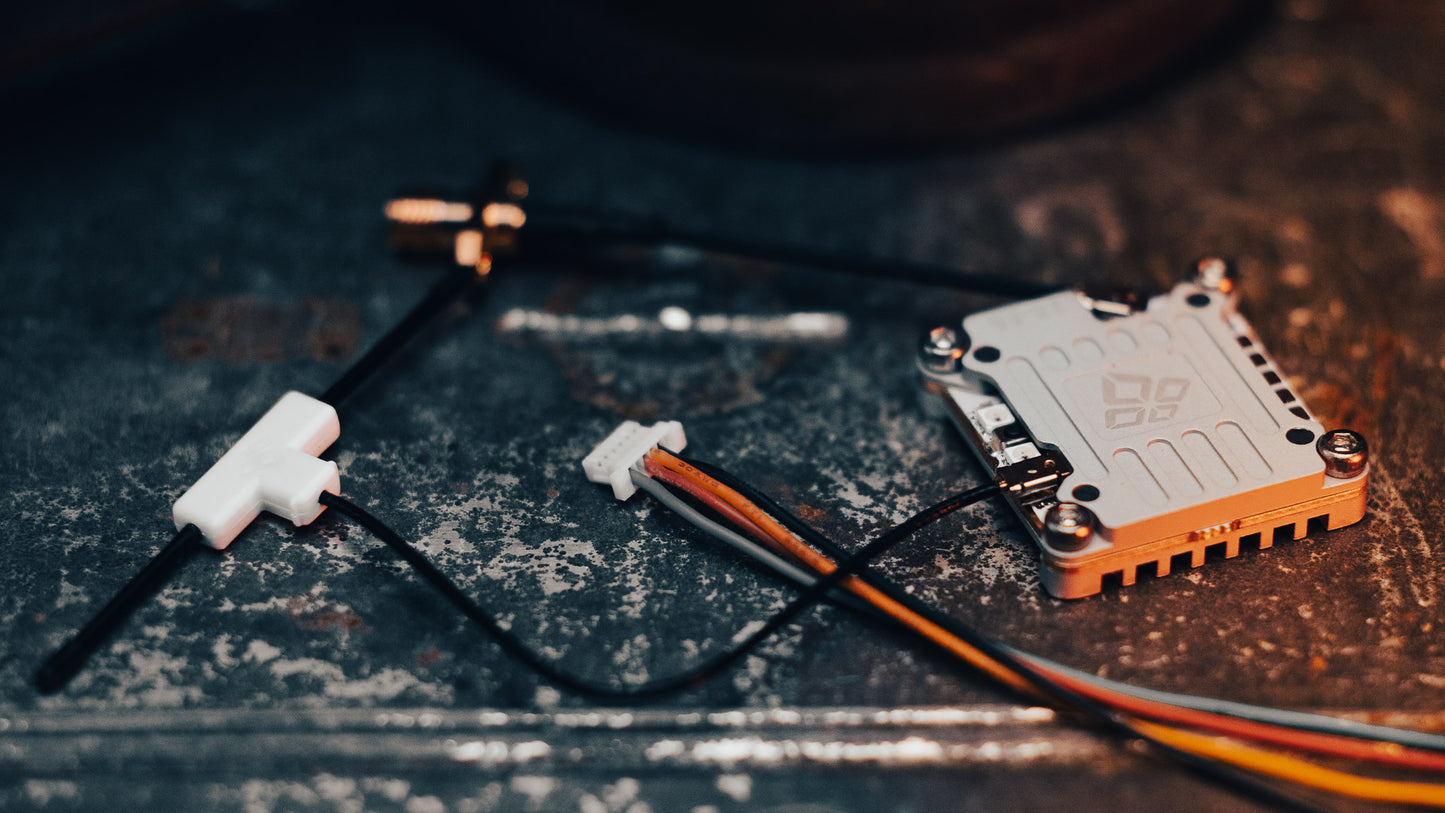

ImmersionRC Ghost Ultimate Hybrid 5.8GHz vTx/2.4GHz Rx

Regular price £67.50
Regular price Sale price £67.50
ON SALE SOLD OUT
Shipping calculated at checkout.

ImmersionRC have been producing incredible gear for FPV since day one and the Ghost system is no exception.

The Ultimate Hybrid takes the innovative Ghost Hybrid concept to a new level, with the traditional long range/low latency Ghost uplink, and a high power Tramp video transmitter, packaged in a beautiful anodized heatsink.


Highlights:

Standard mounting pattern for digital vTx’s (Caddx Vista™)
2s-6s HV operation, no need for a 5V supply
5.8GHz 10-1500mW Video Transmitter *
Onboard Ghost Uno Receiver
Only 10.3g with heatsink, 3.1g without
Long range AND low latency
500Hz updates *
2.4GHz LoRa and FLRC Control
All 48 Standard Channels
Thermally regulated, Factory calibrated


For Bando Basements!

Tired of flying through windows on the top floor of your local bando? much more fun to explore the basement instead.

The Ultimate Hybrid has been tested by months by some of the most respected pilots in the hobby, with a wonderful quote from one of them “What Is This Witchcraft…” after flying not only into a forest, but out the other side.



Intelligent Video Tx Control

Intelligent, and direct control of the video transmitter from the Ghost ecosystem. Use either the OLED menus on the Ghost Transmitter module, or the responsive OpenTx tools menu.

Tx remains silent on power-up, shuts down immediately in an (unlikely) failsafe.


Standard Mounting

Designed to mount seamlessly to any frame designed for Caddx Vista™ systems. The Ultimate Hybrid mounts in seconds to a huge number of commercially available frames.

For traditional frames without support for digital transmitters, a couple of M2 holes in the top plate is all that it takes to securely mount the Hybrid.

As with all Ghost Hybrids, a choice of solder-free connector, or solder pads, to hook it up. Just 4 wires to connect to the flight controller.


qTee Antenna

qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.

Tip to Tip length of just 60mm, easy to install in anything from a Whoop™ to an X-Class quad.

This version of the hybrid ships with a qTee antenna, but we also sell longer versions for bigger builds.

Specs

Downlink RF Power: +13dBm

vTx Transmit Power: +25mW (EU), 1W (USA), 1.5W (Intl)

Sensitivity: -117dBm in Long Range mode

Serial Formats: GHST, SBus, SBus-Fast (200k) , SRXL-2 (400k), SBus Inverted

Firmware: Over-the-air (OTA) upgradable (Rx and VTx)

Power Supply: 2s-6s HV

vTx Control: Automatic, via Ghost

Antenna Connectors: Standard U.FL with Locking Connectors

Dimensions: 31mm x 30mm x 7mm




Included

1x Ghost Ultimate Hybrid,

1x qTee Antenna,

1x U.FL to SMA,

Wire Harness
