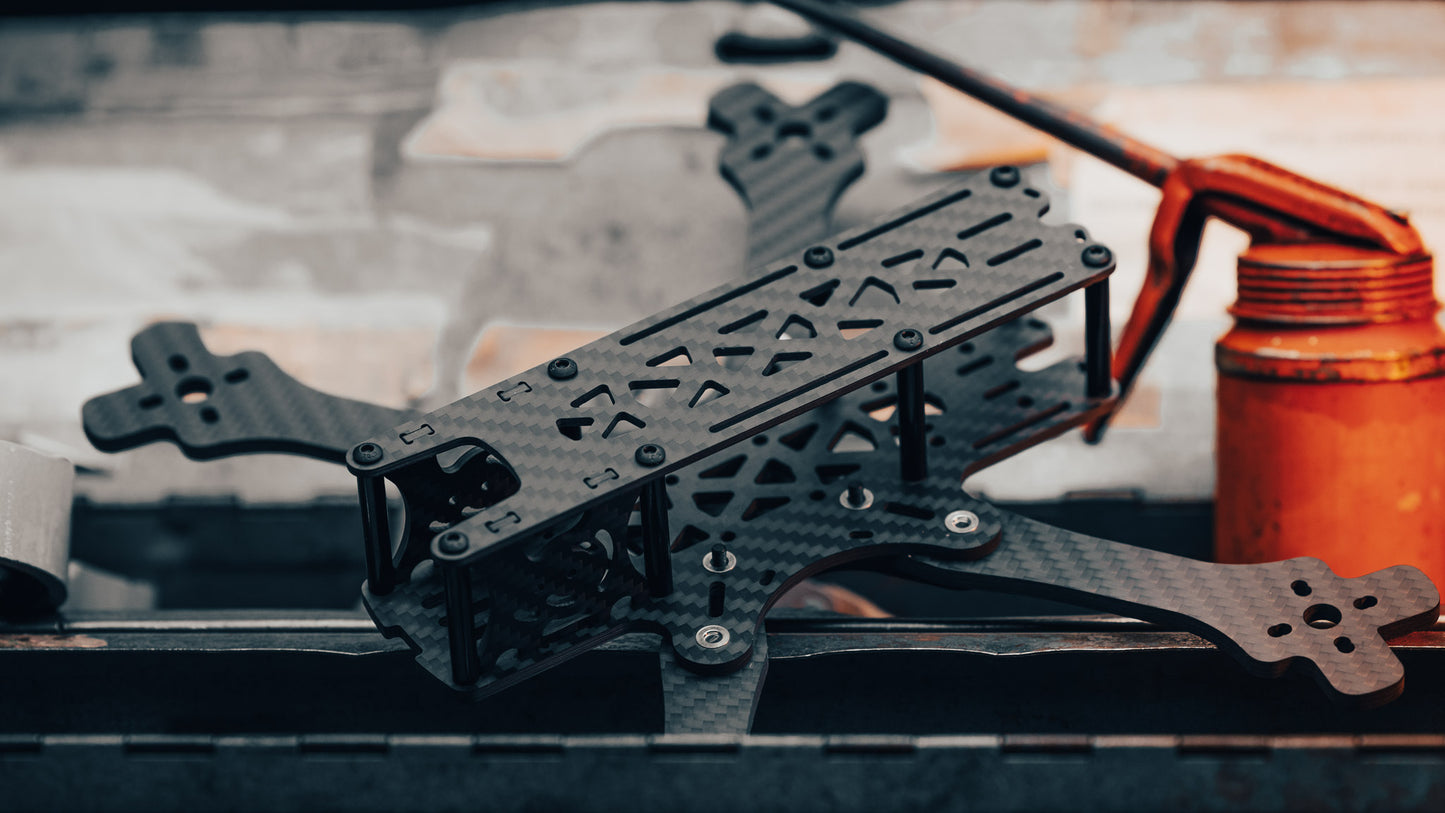

TBS Source One V5 Frame

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Specs:

• Wheelbase 5": 226mm
• Wheelbase 6": 263mm (not sold)
• Wheelbase 7": 300mm
• Top Plate: 2mm
• Bottom Plate: 3mm

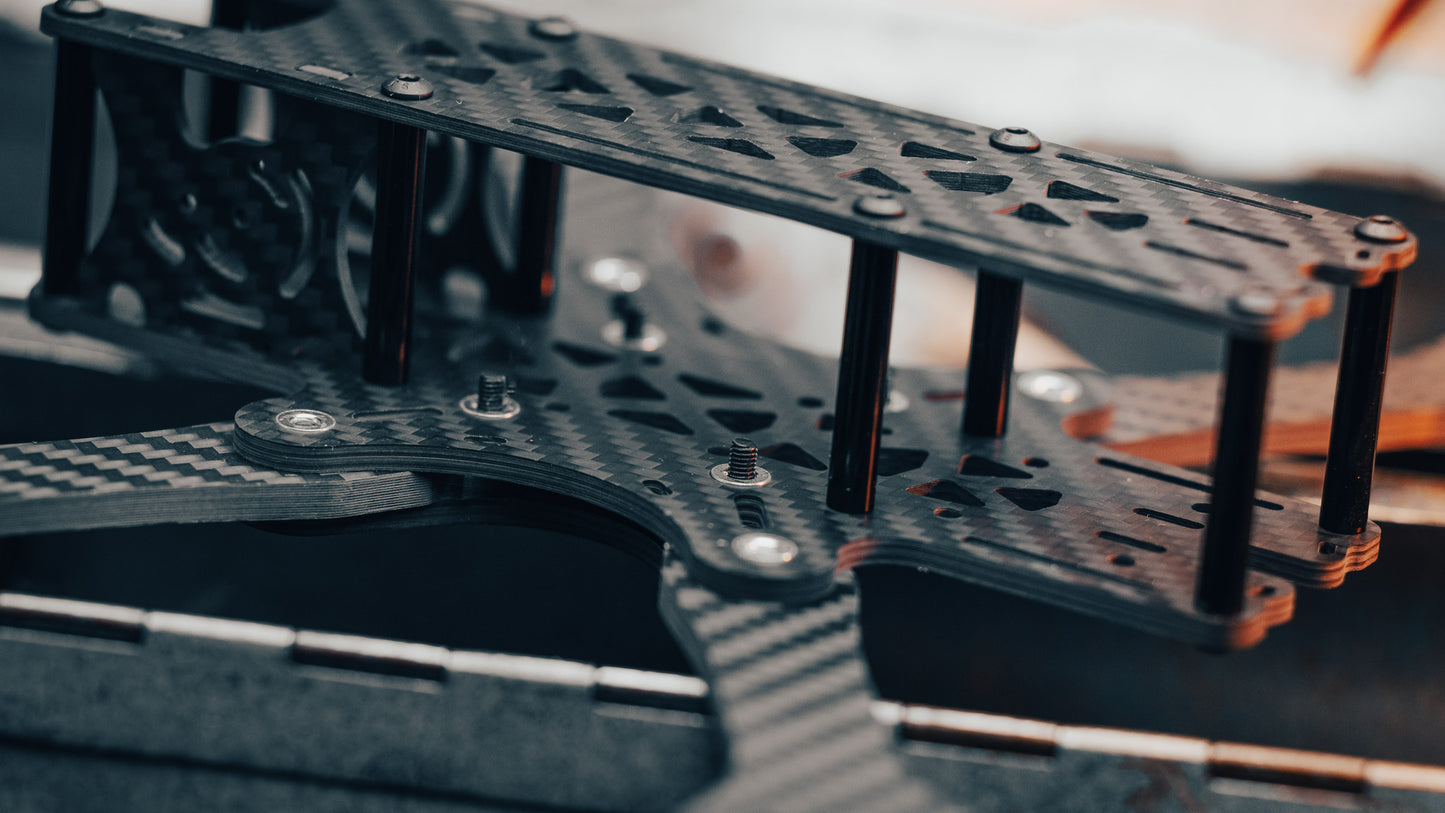

• Standoff height: 30mm

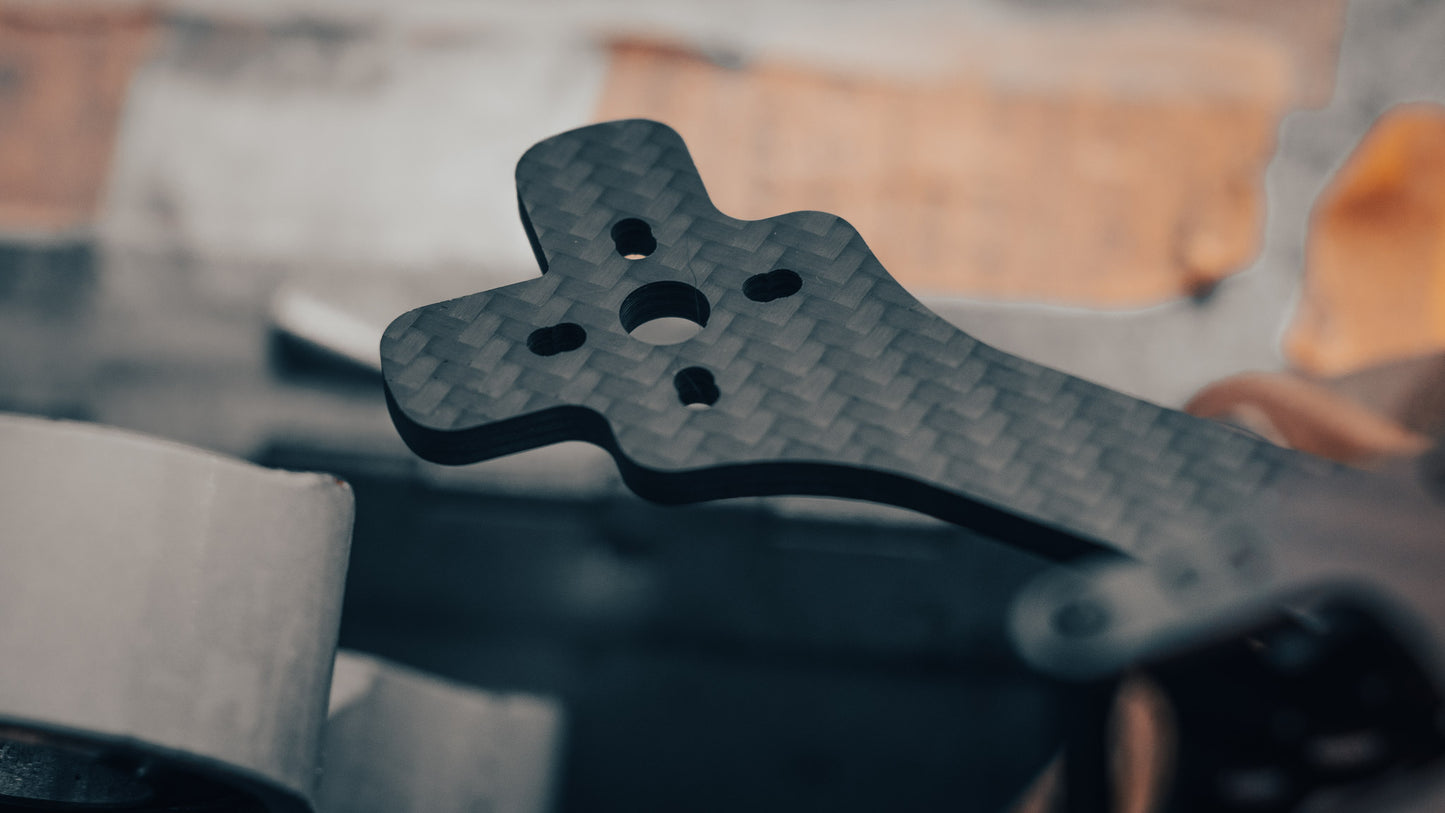

• Arm thickness 5": 4mm
• Arm thickness 6": 4mm (not sold)
• Arm thickness 7": 6mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20
• Weight 5": 145.1g

Hardware:

• 20x M3x10 allen screw
• 4x M3x14 allen screw
• 8X OD 5mm M3 30mm standoff
• 8x M3 press insert nut

Includes:

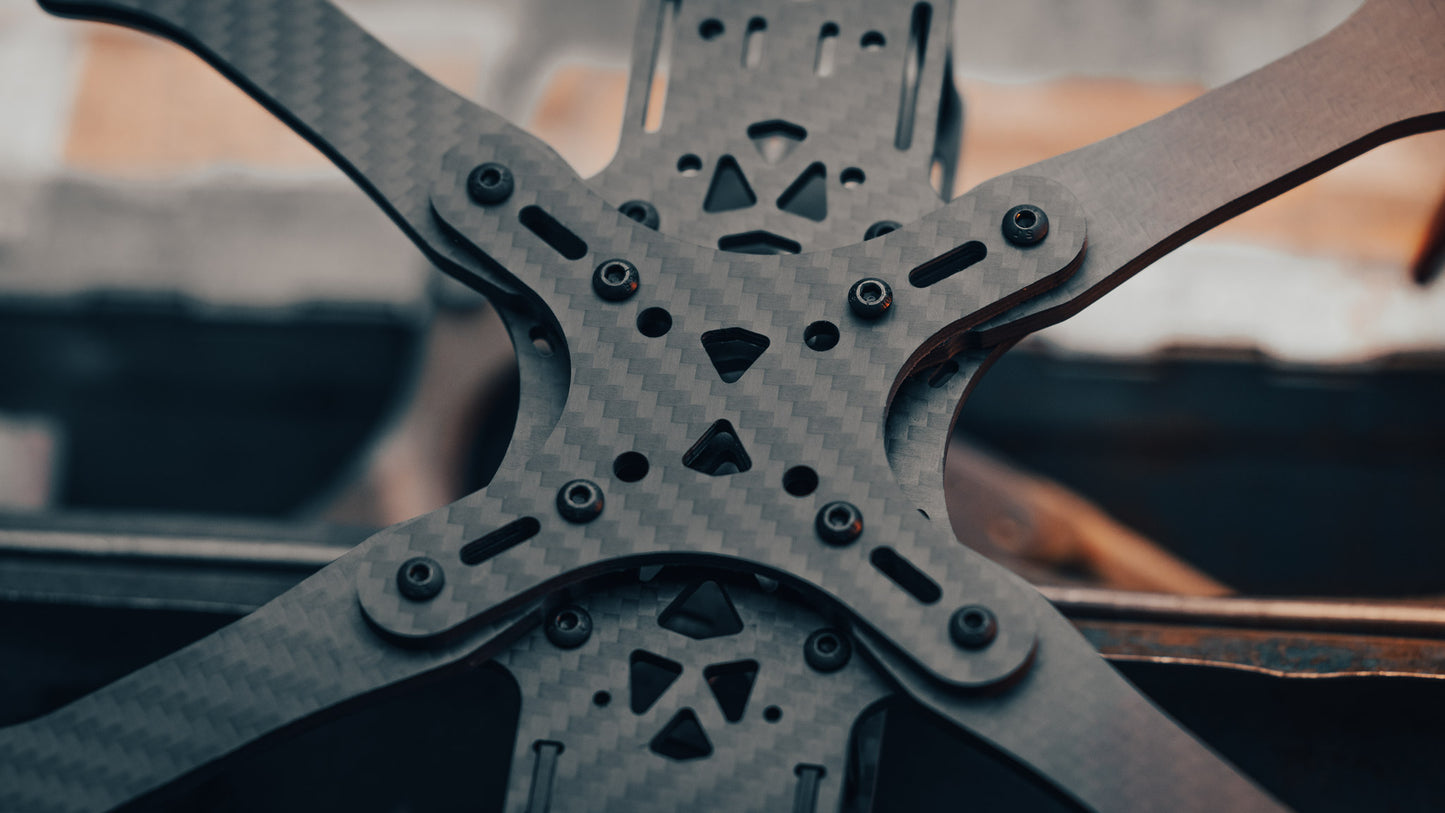

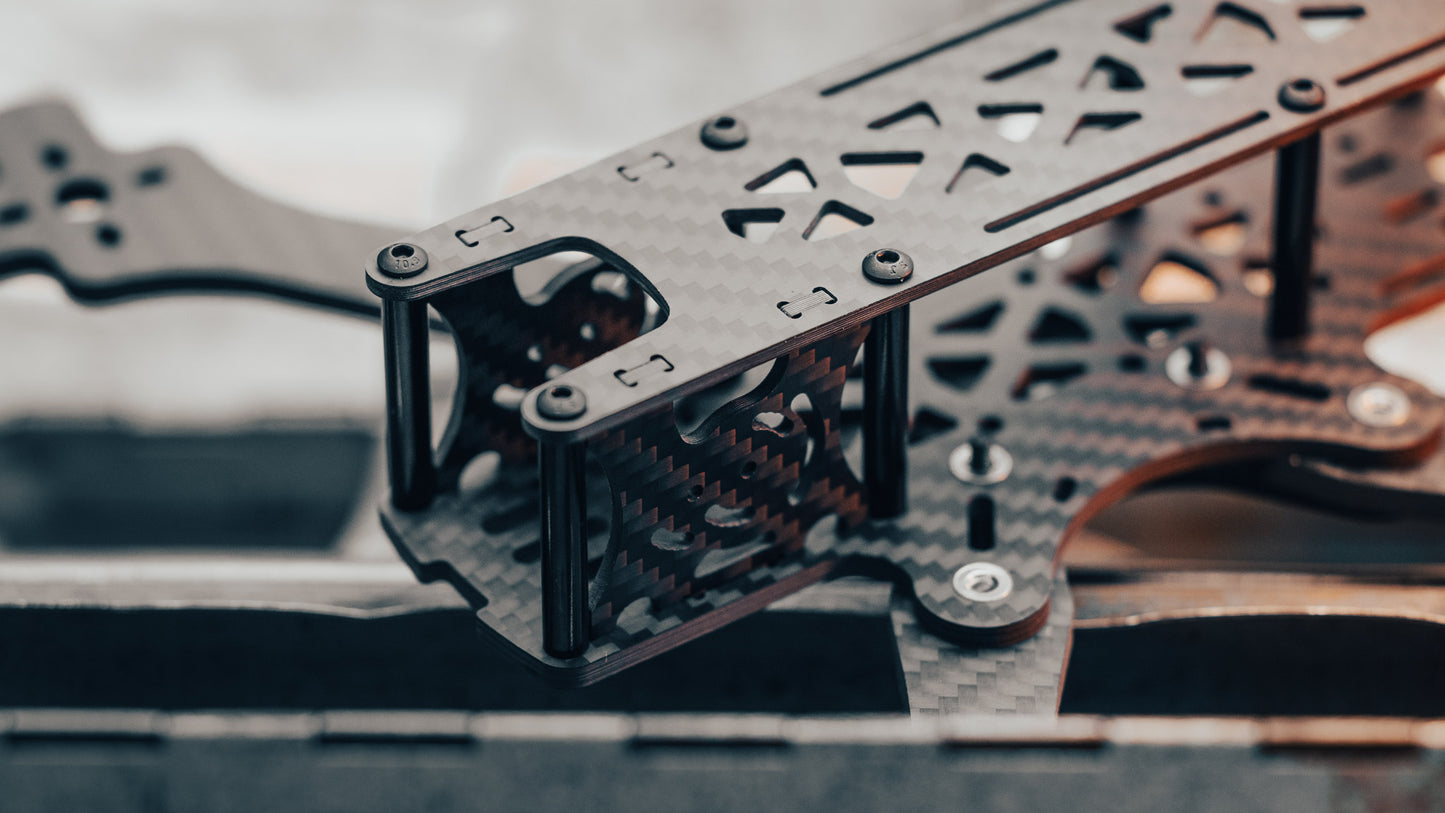

• 1x Frame (Top, Bottom. Brace and 2x Camera plate, 4x Arms)
• 1x Screw & Standoff set
