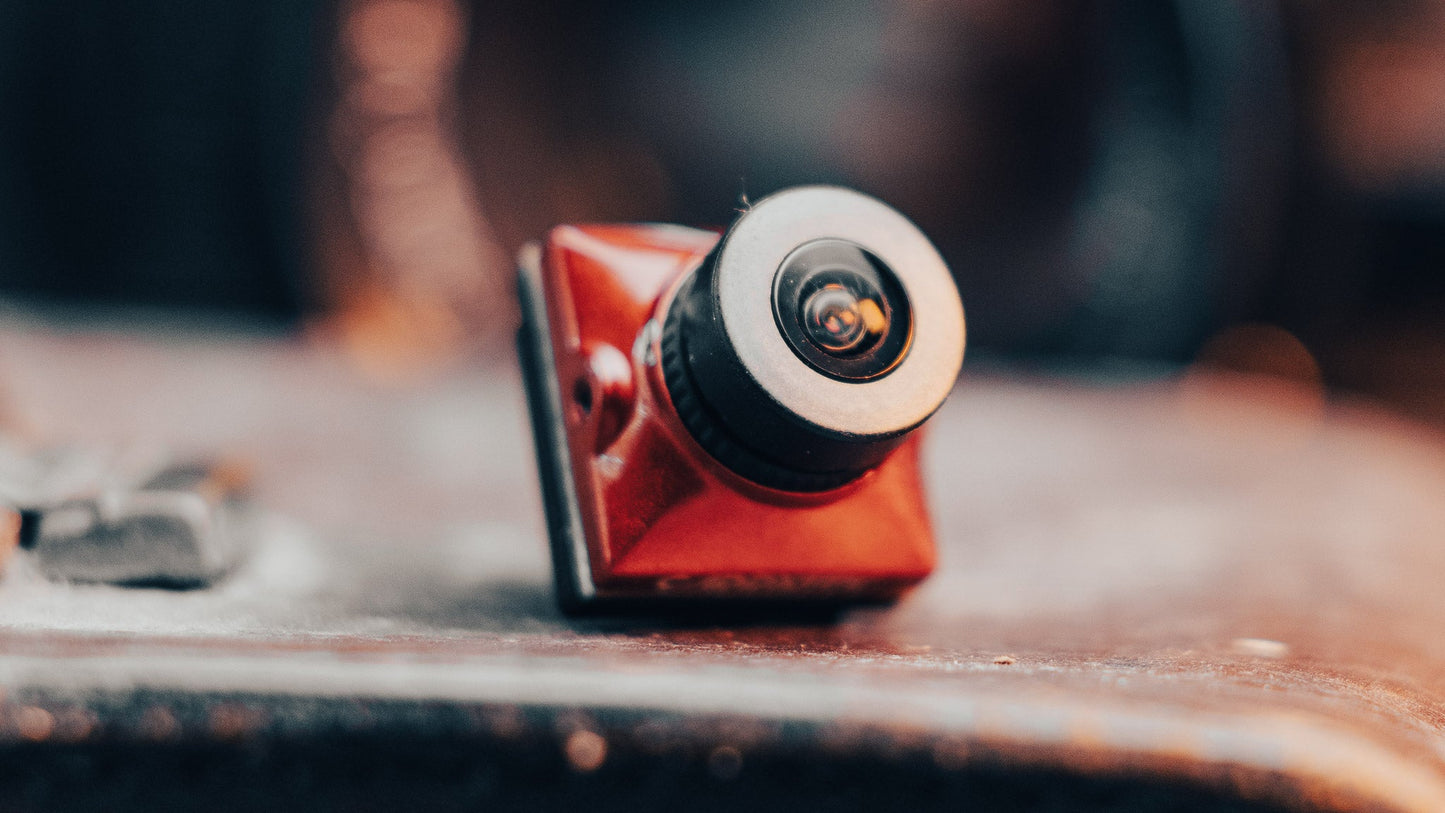

Caddx Ratel 2 FPV Camera

Regular price £21.99
Regular price Sale price £21.99
Shipping calculated at checkout.

The Caddx Ratel 2 is a large sensor, 19mm FPV camera. It features amazing night. vision with clear and sharp images in any light. The Ratel 2 is equipped with high quality 1/1.8″ inch Super wide dynamic range starlight sensor, providing up to 0.0001 sensitivity of lux, 8ms low latency, 4:3/16:9, and PAL/NTSC switchable, and a separate OSD control board.

The lease is the same one as found on the DJI air unit and on to of that, the camera is fully cased to keep rain and title mode muck out.

Available in red and black.


  • Sensor: 1/1.8” Inch Starlight
  • Resolution: 1200TVL
  • FOV: 165°
  • Lens: 2.1mm
  • TV System: NTSC & PAL (switchable)
  • Image: 4:3 & 16:9 (switchable)
  • WDR: Super WDR
  • DNR: 3DNR
  • Min. Illumination: 0.0001LUX
  • Video Output: CVBS
  • Day/Night: Auto/Color/B&W/EXT
  • Shutter Speed: PAL:1/50~100,000; NTSC: 1/60~100,000
  • Wide Power Input: 5-40V
  • Working Temperature: -20℃ ~ +60 ℃
  • Weight: 5.9g
  • Dimension: 19*19*20mm

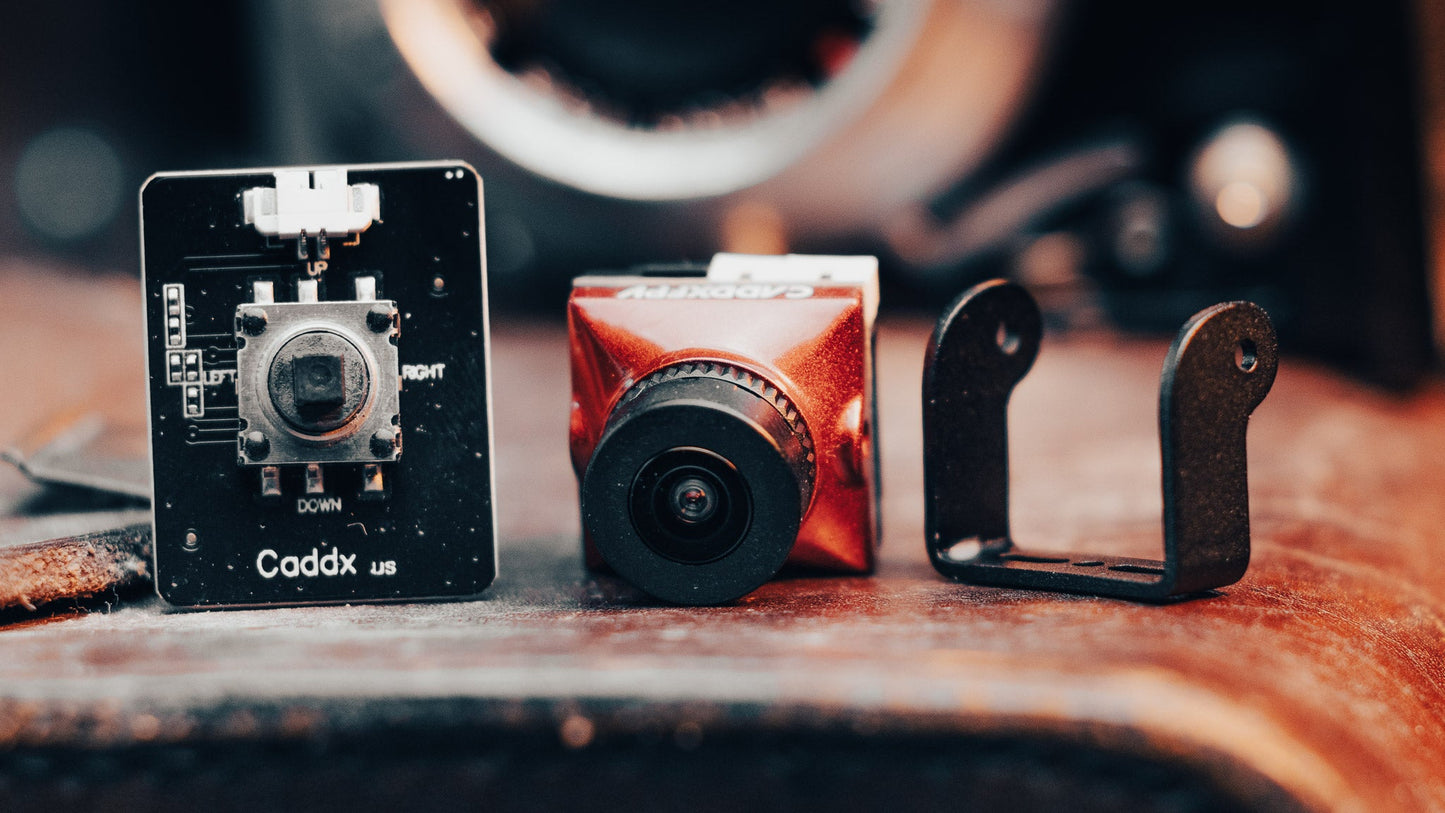

  • 1x Caddx Ratel 2
  • 1x OSD control Board
  • 1x 2Pin Silicon Cable
  • 1x 3Pin Silicon Cable
  • 1x 1.5mm Allen Wrench
