HGLRC Zeus 800mW Smart Mounting 20x20 and 30x30mm VTX

The HGLRC Zeus 800mW is a versatile 20x20mm or 30x30mm stack-mountable 800mw video transmitter.

One nice touch is the solder pads are on the rear of the board, away from any components so if you were to sneeze while soldering, you'll be ok!

With status lights on board for power, band and channel you can quickly change your settings with a with the two buttons (not short and long presses here!) Or just controller it via the IRC Tramp protocol from your FC.

The board boasts strong filtering for the best possible signal clarity and comes with a linear whip antenna or an SMA adapter that use the onboard MMCX connecter.

Specs:

Built-in Microphone
Input voltage:DC 6-26V
Output voltage:5V/2A
PIT@94mA
25mW@169mA/14dBm
100mW@199mA/20dBm
200mW@216mA/23dBm
400mW@279mA/26dBm
800mW@387mA/29dBm
Antenna interface:MMCX
Output power:PIT/25/100/200/400/800mW

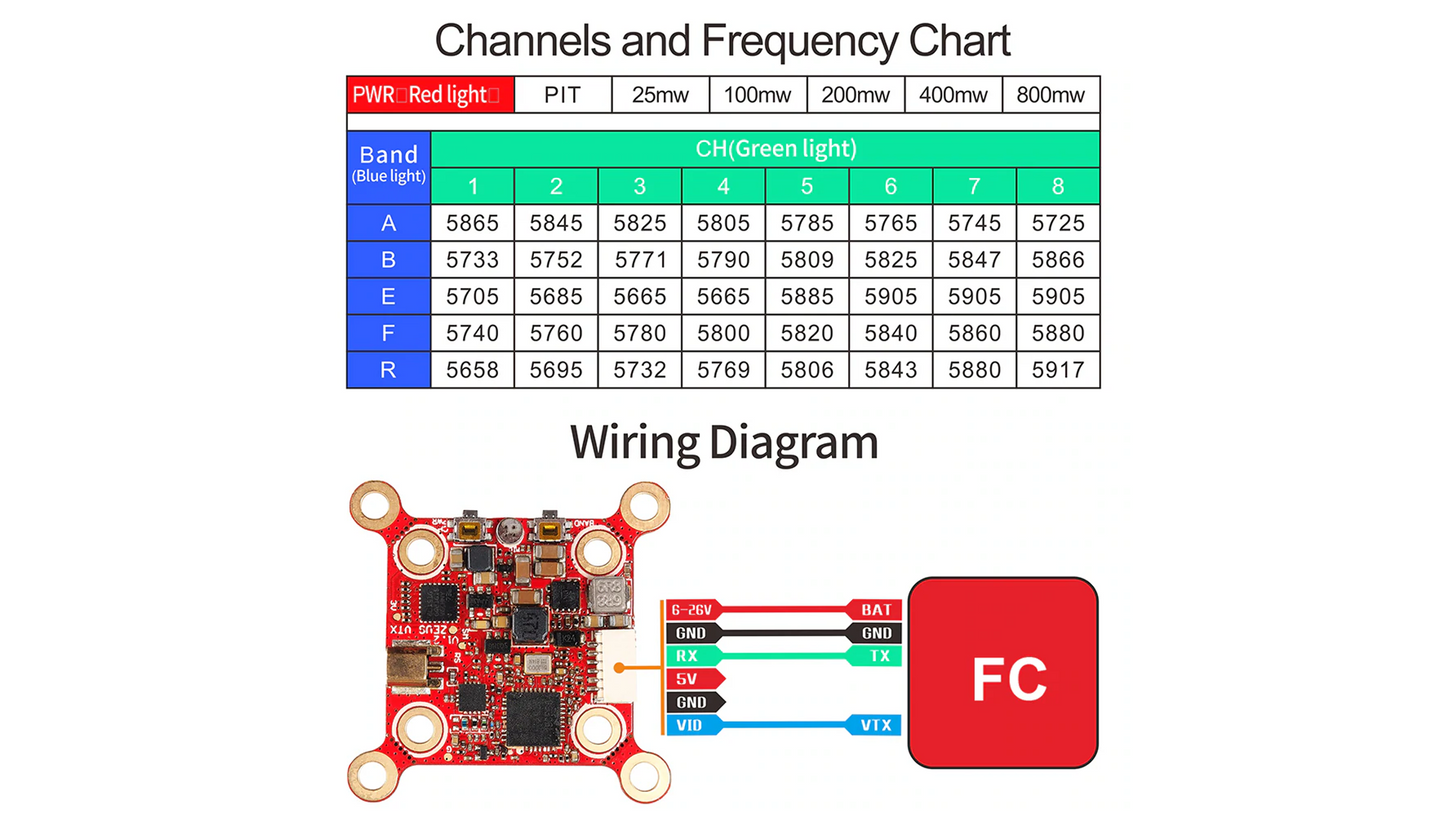

Frequency:5.8GHz 5 bands, 40 channels
Installing Hole:20X20/30X30mm.M3
Size:37mm x 37mm x 5mm
Weight:4.8g

Includes:

1x Zeus 30A ESC
1x XT60H Connector
10cm 12AWG Silicone Wire
1x 35V 1000uf capacitor
1x SH1.0 8PIN 60MM Cable
M3 Shock absorption gummies
