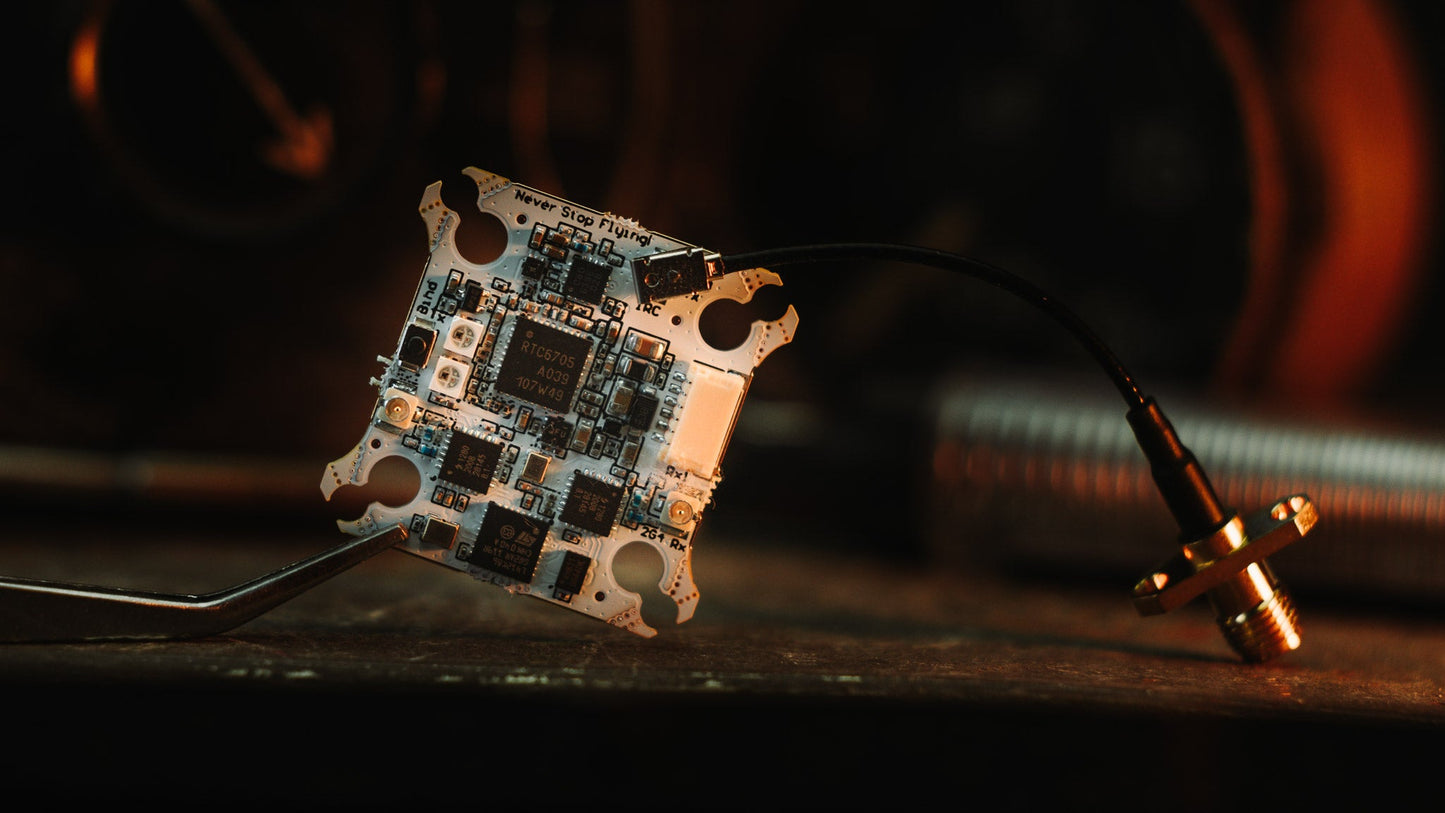

ImmersionRC Tramp/Ghost Hybrid V2 DUO

Regular price £54.50
Regular price Sale price £54.50
ON SALE SOLD OUT
Shipping calculated at checkout.

ImmersionRC have been producing incredible gear for FPV since day one and the Ghost system is no exception.

With the Tramp video transmitter IRC set out to raise the bar on video transmitter technology. With Ghost, they set out to redefine the norms in receivers for R/C control. Now the two have been fused together, in the groundbreaking Ghost Hybrid V2.

The Best Race Control Link

A combination of two full receivers and the unique ‘Solid250’ mode, fuse to provide the most solid race control link in the business, with no competition in sight.

Racers at the higher tiers of the sport can’t afford lost packets, and traditional R/C links just can’t deliver a solid link. The Ghost Duo uses receiver diversity, temporal diversity, frequency diversity, and polarization diversity simultaneously to guarantee an absolutely solid link.

And If ImmersionRC's rep isn't enough for you, this was developed with the help of the unbeatable XBlades team. Designed by pilots, built by pilots, supported by pilots.

Intelligent Video Tx Control

Intelligent, and direct control of the video transmitter from the Ghost ecosystem. Use either the OLED menus on the Ghost Transmitter module, or the responsive OpenTx tools menu.

Tx remains silent on power-up, shuts down immediately in an (unlikely) failsafe.

The Best For Team Racing

During team racing pit-stops are as adrenaline fueled as they are with Formula 1 racing. Pilots need to get on the ground, and their teammates in the air as quickly as possible.



The Ghost Hybrid is the first and only product to natively support team racing, without the help of a flight controller.

Split-second transmitter shut-off, and instantaneous power-up of the following quad are truly best in class, as shown by a 1st place win at the MultiGP Mayhem 2021 edition.

The best part… no complex configuration, just bind, assign switches, and fly.

qTee Antenna

qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.

Tip to Tip length of just 60mm, easy to install in anything from a Whoop™ to an X-Class quad.

This version of the hybrid ships with two qTee antennas, which may be installed orthogonal to each other for polarization diversity. We also sell longer versions for bigger builds.

Specs

Dimensions: 26mm x 26mm, 2.2g (w/o antennas)
Mounting: 20 x 20, or 25.5 x 25.5mm
Uno version (single Rx), or Duo version (dual Rx)
Single sided PCB with gummies included
Only 2.2g, perfect for the sub-250g class
Long range AND low latency
500Hz updates (1kHz ready for when OpenTx can supply quality data at this rate)
Native Team Race Support, split second pit times
2.4GHz LoRa and FLRC Control
5.8GHz 1-600mW Video Transmitter
All 48 Standard Channels
Thermally regulated, Factory calibrated
Downlink RF Power: +13dBm
Sensitivity: -117dBm in Long Range mode
Serial Formats: GHST, SBus, SBus-Fast (200k) , SRXL-2 (400k), SBus Inverted
Firmware: Over-the-air (OTA) upgradable (Rx and VTx)
Power Supply: 5V, with Over Voltage Protection
vTx Control: Automatic, via Ghost
Antenna Connectors: Standard U.FL with Locking Connectors

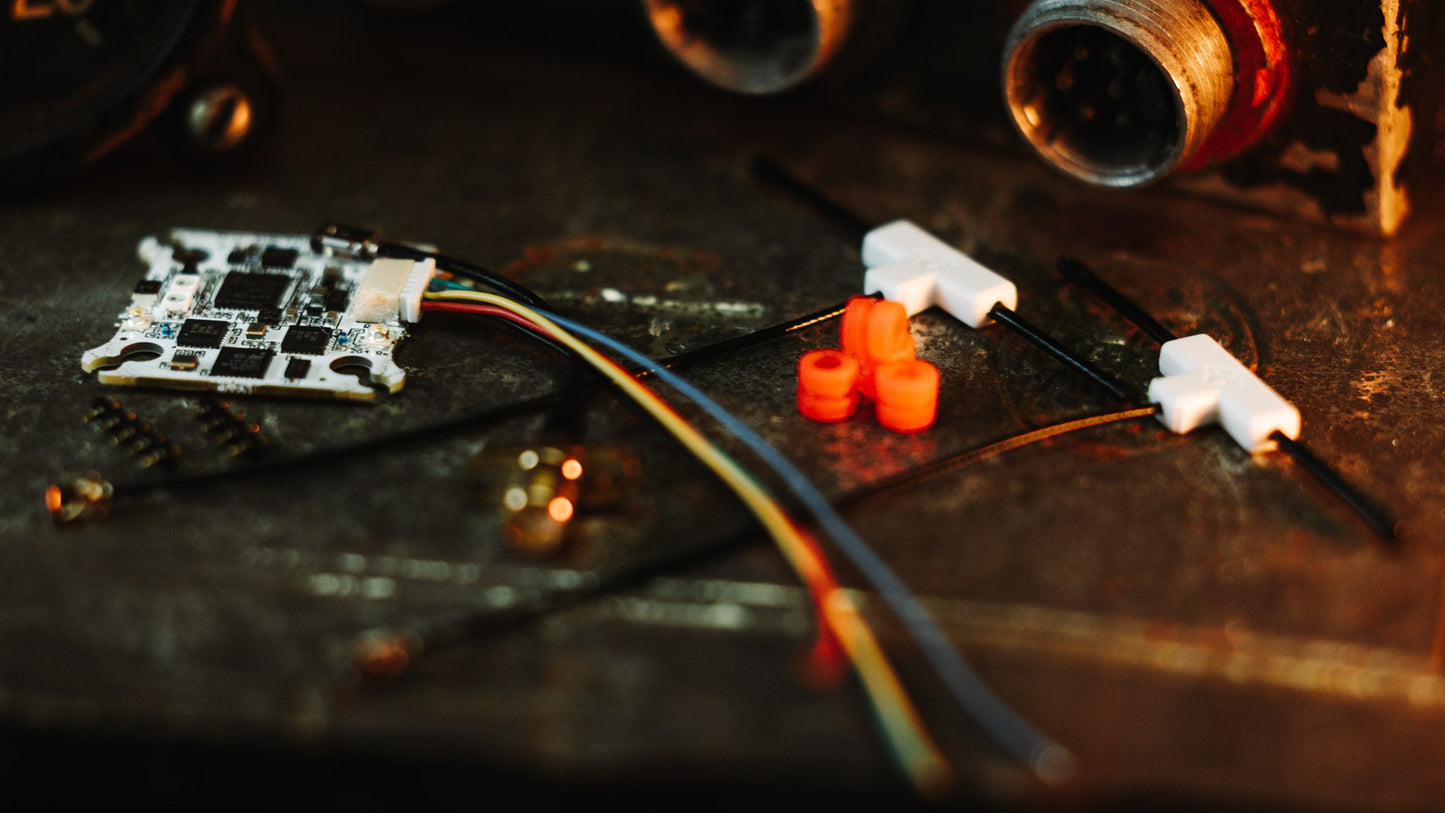

Included

1x Ghost Hybrid Duo
2x qTee Antenna
1x U.FL to SMA
Wire Harness
4x Mounting gummies
