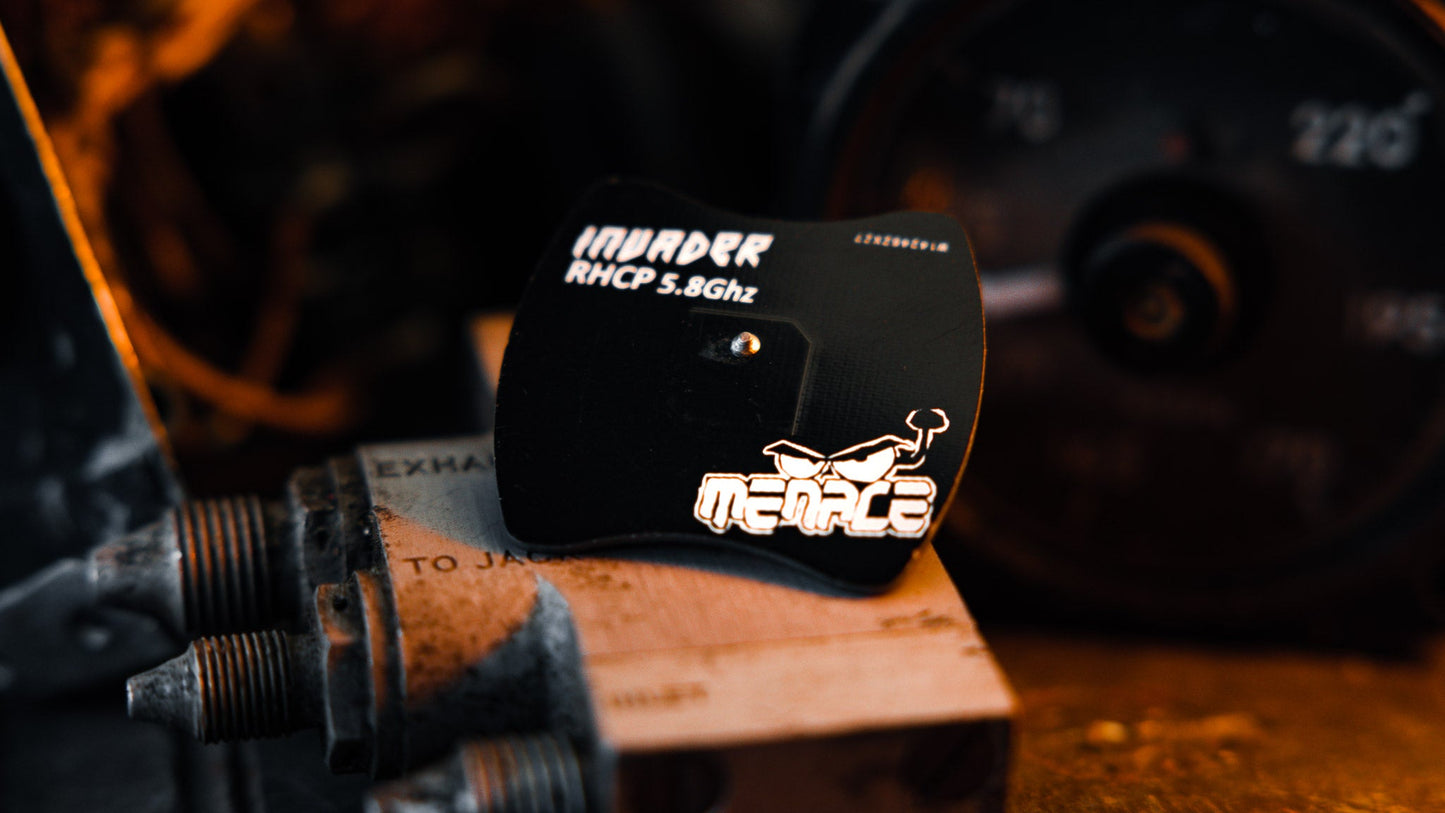

MenaceRC Invader 5.8Ghz Polarised Receiver Patch Antenna

This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed in the UK by Menace RC.

Light enough to be mounted directly onto your Goggles, or directly onto the front of any of the receivers we stock.

Works great with  SpiroNET Omni on your quad and despite being tiny will easily double the range.

Specs:

• Frequency Range: 5645 – 5945 Mhz
• Gain: 6.5 dBi
• Beam Width: 150° at -7db, 120° at -5db, 90° at -3db
• Left or Right Hand Circular Polarised ( LHCP version available here)

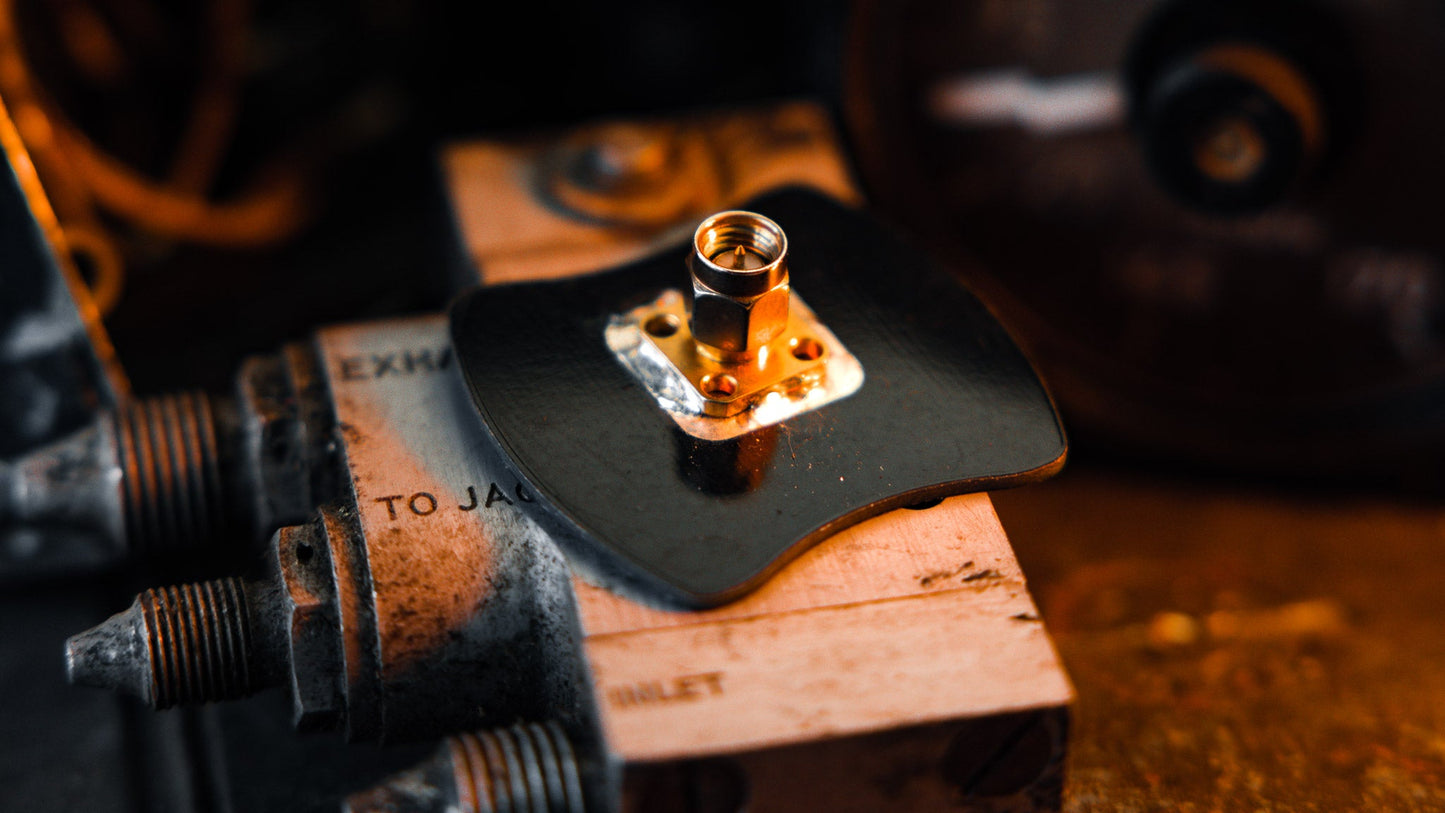

• SMA Connector (Fits Fatshark Goggles)
• Dimensions: 45mm x 41mm x 16mm
• Weight: 11grams



Real World Performance:

Range in excess of 1Mile (1.6km) and 150m behind with a 200mW Vtx
Reduced multipath propagation compared to 360 degree skew style receiving antennas as the sensitivity is mainly in front of you.

Testimonials:

"These antennas are great" - Luke Bannister

"The Invader patch has performed excellently. On 25mw at weekend racing it was just as good as my vas crosshair on the course. today im flying low to the deck a hell of a long way off behind hedges, still excellent. they are a sure bet" – Russell Cleaver – Fatshark Goggles

"Just want to say your Invader patches rock, Ran the pair all weekend at Formula FPV perfect video all the time! You are onto a winner" – Warren Jeffs

"Patch is ace coupled with a CP very very impressed can get behind buildings and a far distance with the combo. Tried it indoors at the helicopter museum – no loss or multipath at all."  Jared Hornsby – HillBilly Hotquads – Skyzone Diversity goggles.
