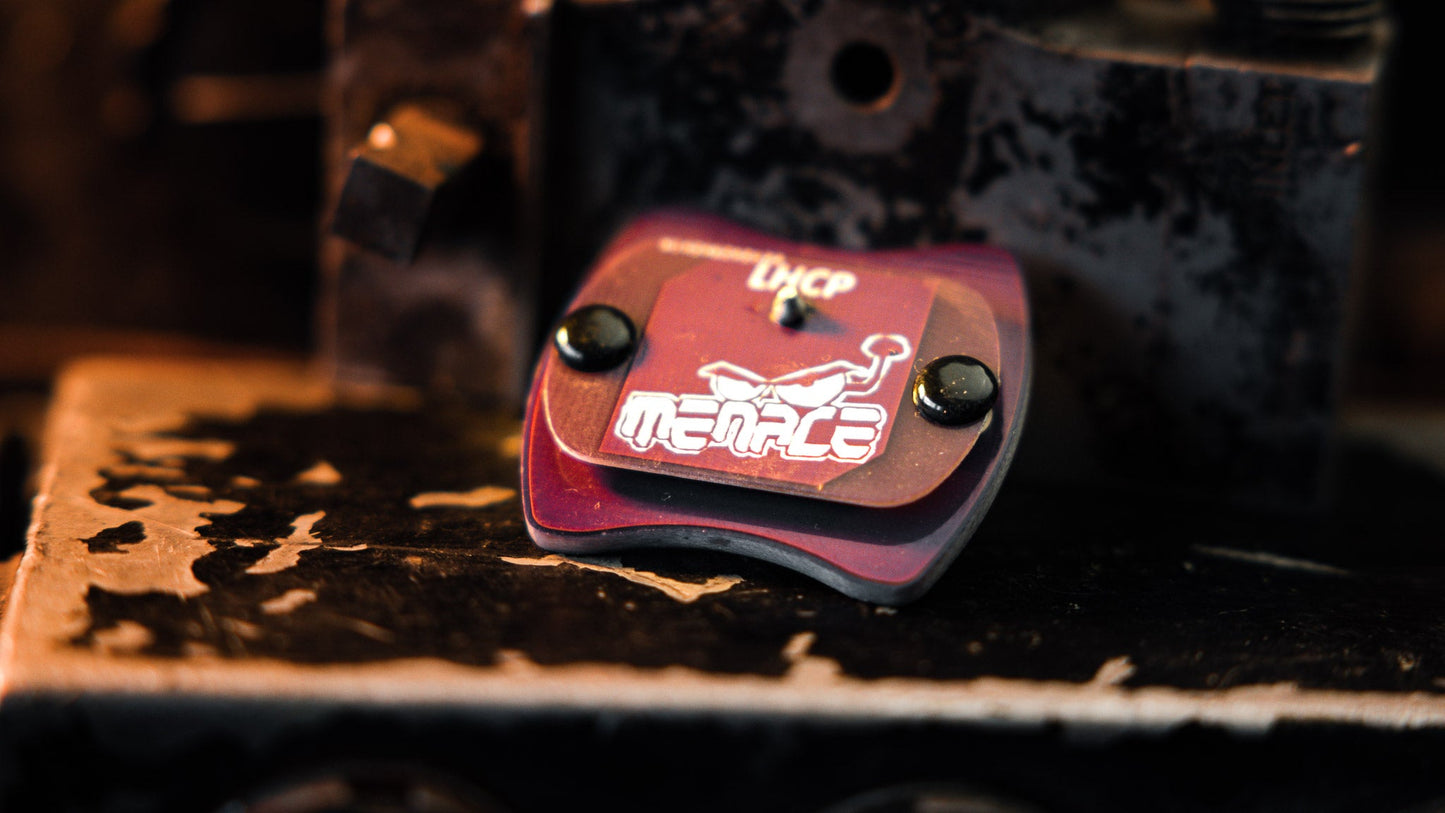

MenaceRC Pico Patch Antenna

The PICOpatch antenna is MenaceRC's smallest receiving patch that is big in performance. The perfect partner for a circular polarised omni style transmitter antenna.

Features:

• High sensitivity for increased range
• Ergonomic design to fit diversity modules on goggles
• Small enough to stay on your goggles in the carry case.
• 5.8ghz Frequency Bands Compatible
• Circular Polarized for left or right hand
• Designed for goggles or base stations.
• Perfect for diversity setups.

Specs:

• Frequency Range: 5645 – 5945 Mhz
• Gain: 9.4 dBi
• Beam Width: 61° at -3db points
• Available in left or right hand circular polarised (LHCP or RHCP)

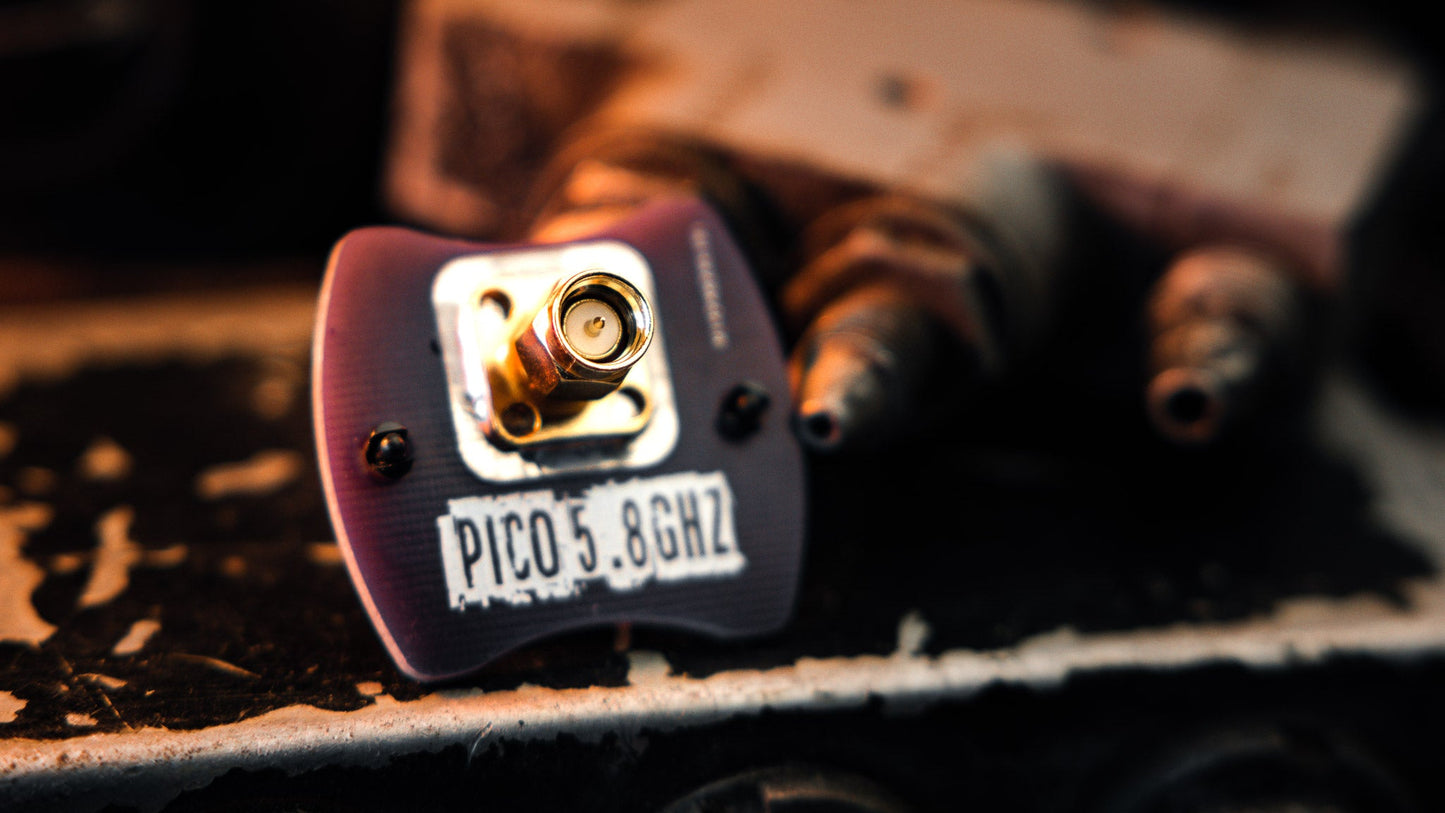

• SMA Connector (Fits Fatshark Goggles)
• Dimensions: 37.0mm x 33.6mm x 19.2mm
• Weight: 10 grams

Real World Results:

• 25mW Range tested to 1.33km
• 60% increase in range over a 5db patch
• 20% increase in range over a 8db patch
• 38% increase range over the Invader patch
• Reduced multipath propagation compared to 360 degree omni style receiving antennas.
