MenaceRC Raptor 5.8Ghz Circularly Polarised Antenna

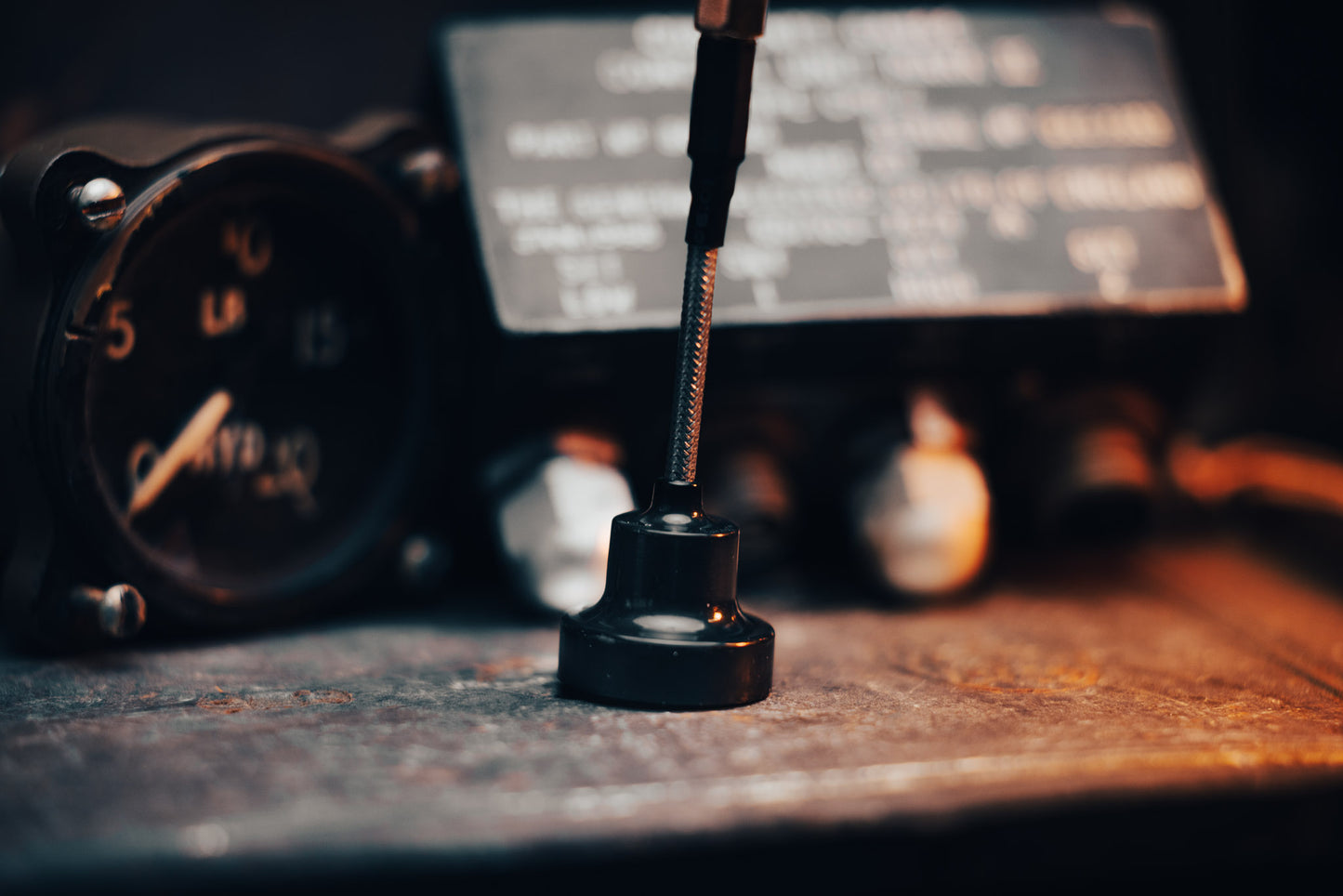

The Raptor antenna is a small compact Omni that delivers a smooth radiation pattern and a high axial ratio with its unique PCB pagoda construction designed by Maarten Baert.

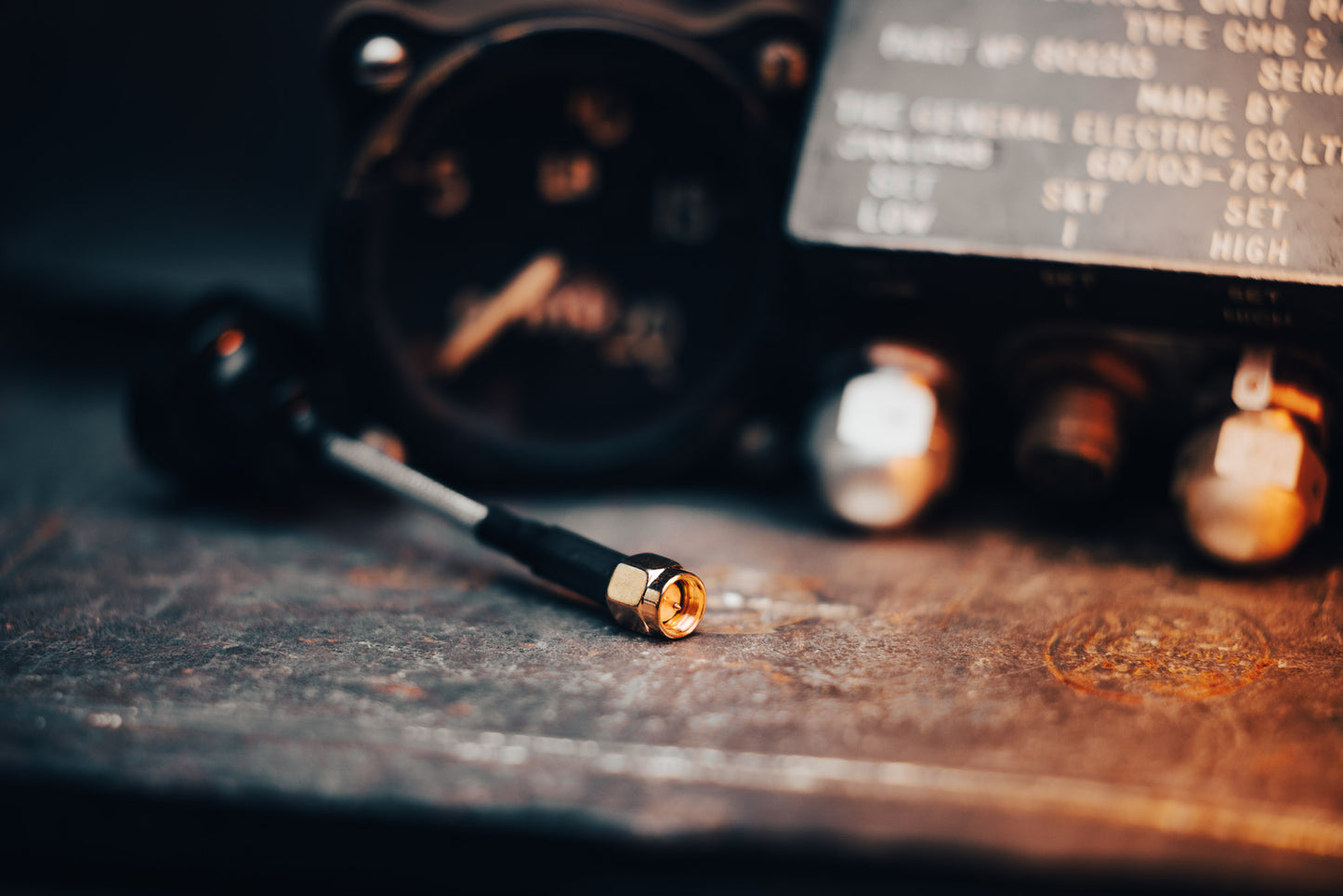

These are the new and improved version that uses an extra crimp collar to make the join between antenna and SMA connector much stronger.

Features:

• Small 5.8Ghz Aero design with excellent omni directional pattern
• Unique PCB construction allows manufacturing within fine tolerances
• Gain 1.09db with a radiation efficiency of 92%
• Clearer video reception with up to 20% greater signal received than other omni antenna topology with higher gain
• High Axial Ratio for reversed polarity rejection, ideal for send and receive as a pair.
• Robust injection moulded case for crash protection
• Weighs less than 10grams

Specs:

Centre frequency 5.8 GHz
Frequency Range: 5550 – 6050 MHz
Matching S11 < -20dB, VSWR <1.22
Gain: 1.09dB with efficiency: 92%
Axial Ratio <1.3
Beam width: 360 degrees
Left or Right Hand Circular Polarised ( LHCP or RHCP)
SMA Connector
Height: 85mm
Weight: 9.4grams


Credit:

Manufactured under License CC BY-SA 4.0 from Maarten Baert
