NewBeeDrone Infinity AIO V2 F7 BLHeli32 55A All In One Flight Controller

There are stacks, there are all-in-ones and then there is THIS - It looks like it belongs under the bonnet of a Lambo!

Now in V2, the Infinity AIO is completely covered in a heatsink with even better weatherproofing and packed with all the requested features from V1 users such as on OSD and more UARTS.

The AIO is truly the next level solution for flight controllers and ESCs. Based on data from the Infinity AIO V1, not only was the AIO solution more compact but there were also less issues compared to stacks.

NBD have invested immense amount of R&D time to optimize the hardware between high current and signal processing layout to make the board extremely compact and with no interference. Additionally, by sealing every component inside the aluminum heatsink which acts like a shield to protect from dusts and other conditions, we maximize the physical toughness of the AIO stack.

Specs:

• MCU: STM32F745VEH6
• Gyro: BMI270
• LED: 4x Betaflight Addressable LED’s
• Blackbox:1MB
• 6-Pin DJI FPV Air Unit Connector
• Micro USB Connector
• UART1 - SBUS on DJI Connector (RX only)
• UART2 - DJI Connector
• UART3 - Free
• UART7 - Free
• UART8 - Free
• 4x SMT32G071 BLHELI32 ESC MCU
• Continuedly Current 55A and 65A Burst ESC
• 3-6S Battery Input
• 10V 3A 30W Design for DJI FPV Air Unit
• 5x37mm with 30.5x30.5 Mounting Holes
• Weight: 22gr. without grommets
• Betaflight OSD support Analog build
• I2C_SCL I2C_SDA Ready
• Buzzer Ready
• LED Ready
• 5V 2A Power supply for external LED or GPS module


Includes:

• 1x Infinity AIO V2 Flight Controller + ESC
• 1x Infinity AIO V2 to DJI Air Module Cable 100mm (Silicon wire)

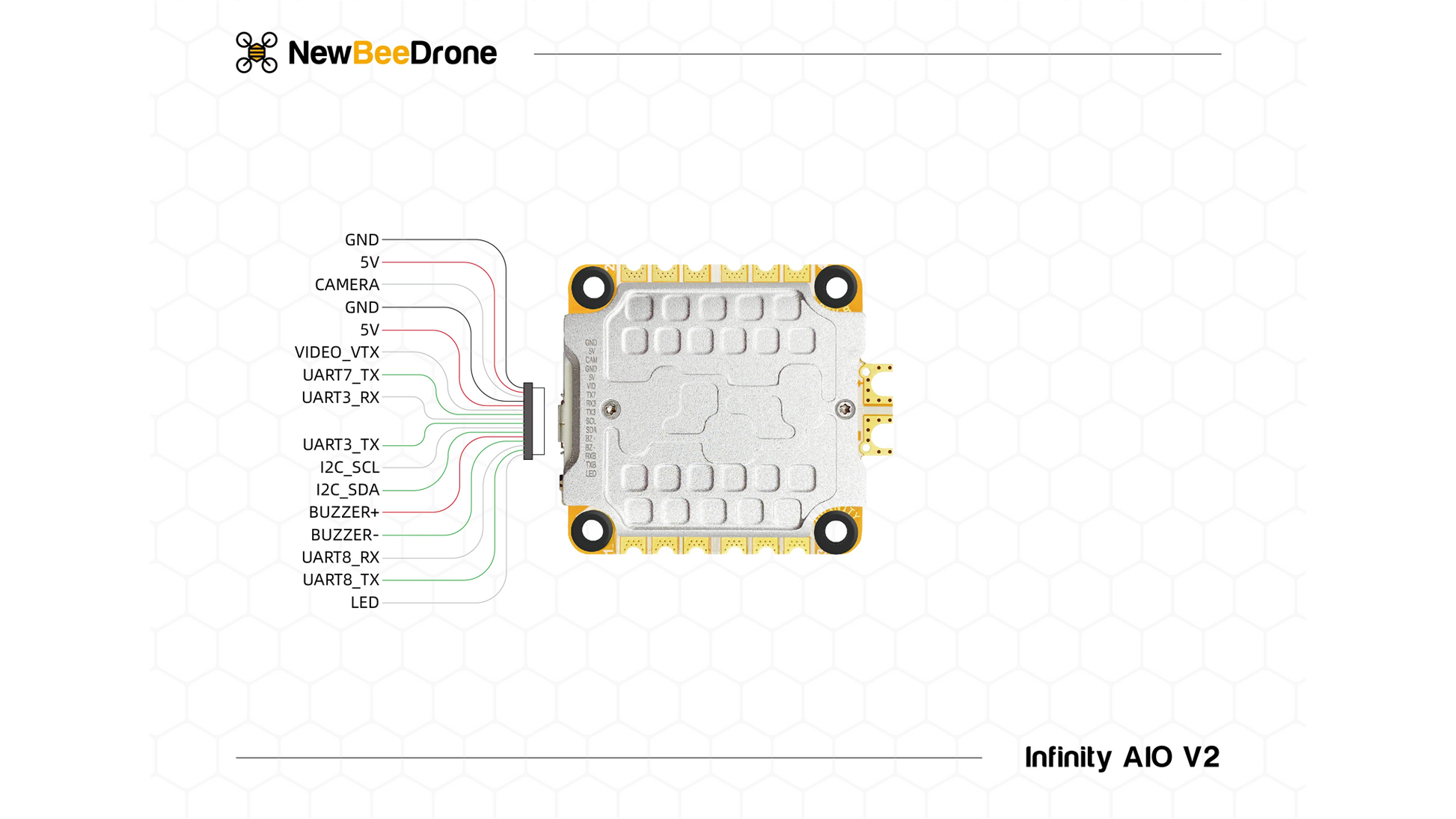

• 2x Infinity AIO V2 JST0.8 16Pin Cable 150mm (Teflon wire)
• 13x Nylon Lock Nut
• 5x Steel Screw M3x14
• 4x Grommets Short 4x Grommets Long
• 1x 470uf 35v Electrolytic Capacitor
• 1x XT60 Cable
