NewBeeDrone Infinity305 3-6s 4n1 ESC (45A + 55A Burst)

Regular price £68.90
Regular price Sale price £68.90
ON SALE SOLD OUT
Shipping calculated at checkout.

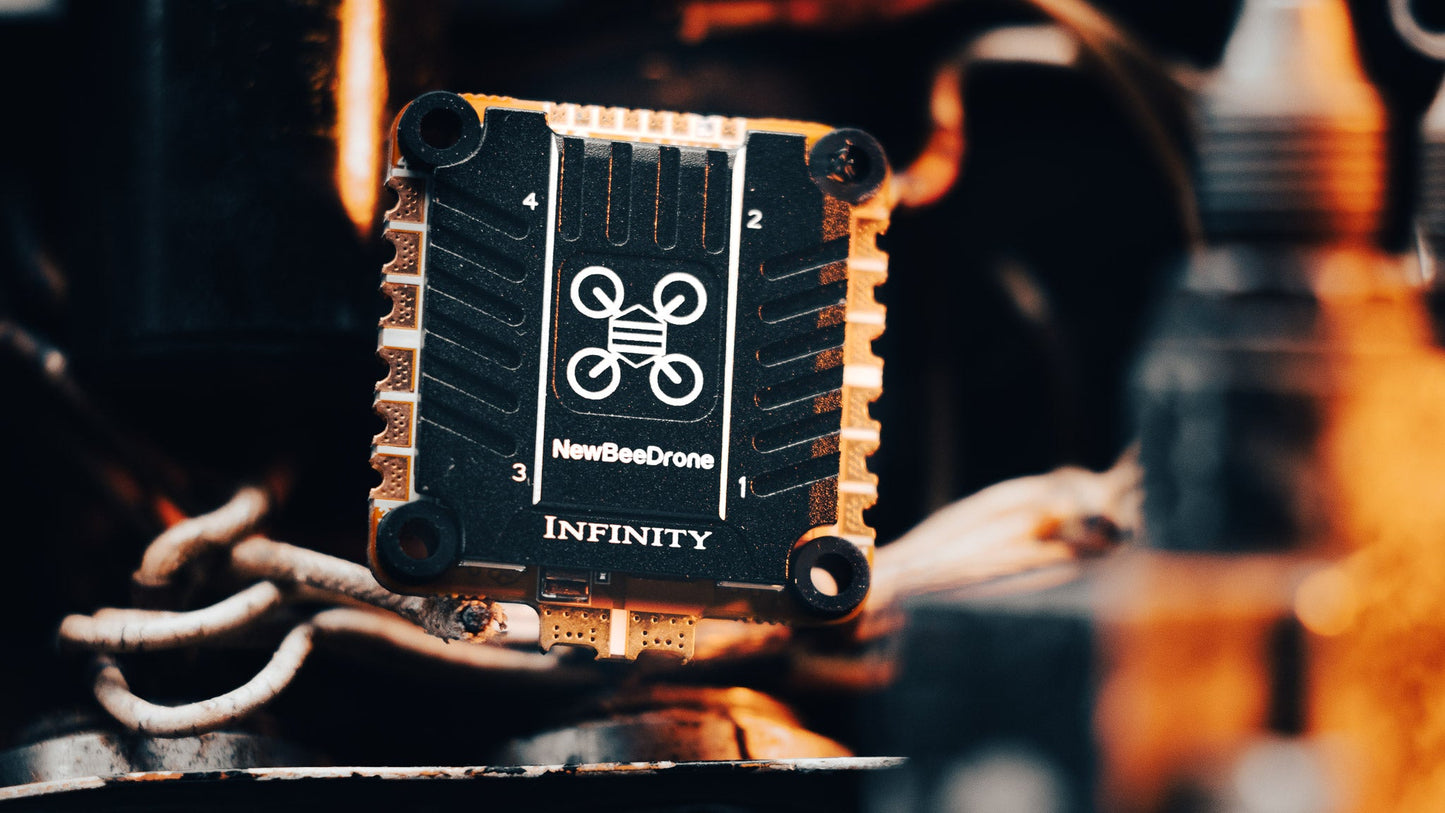

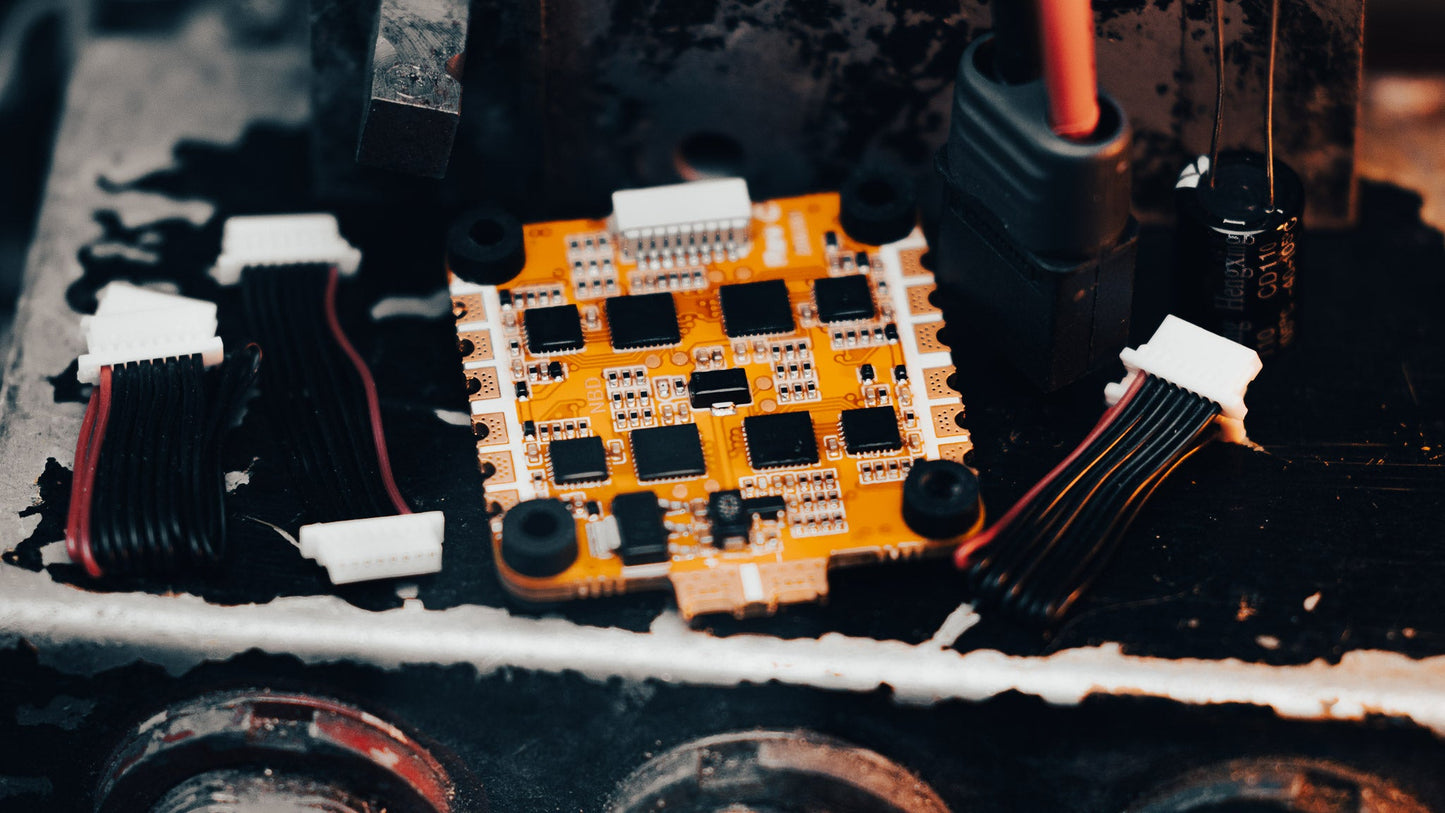

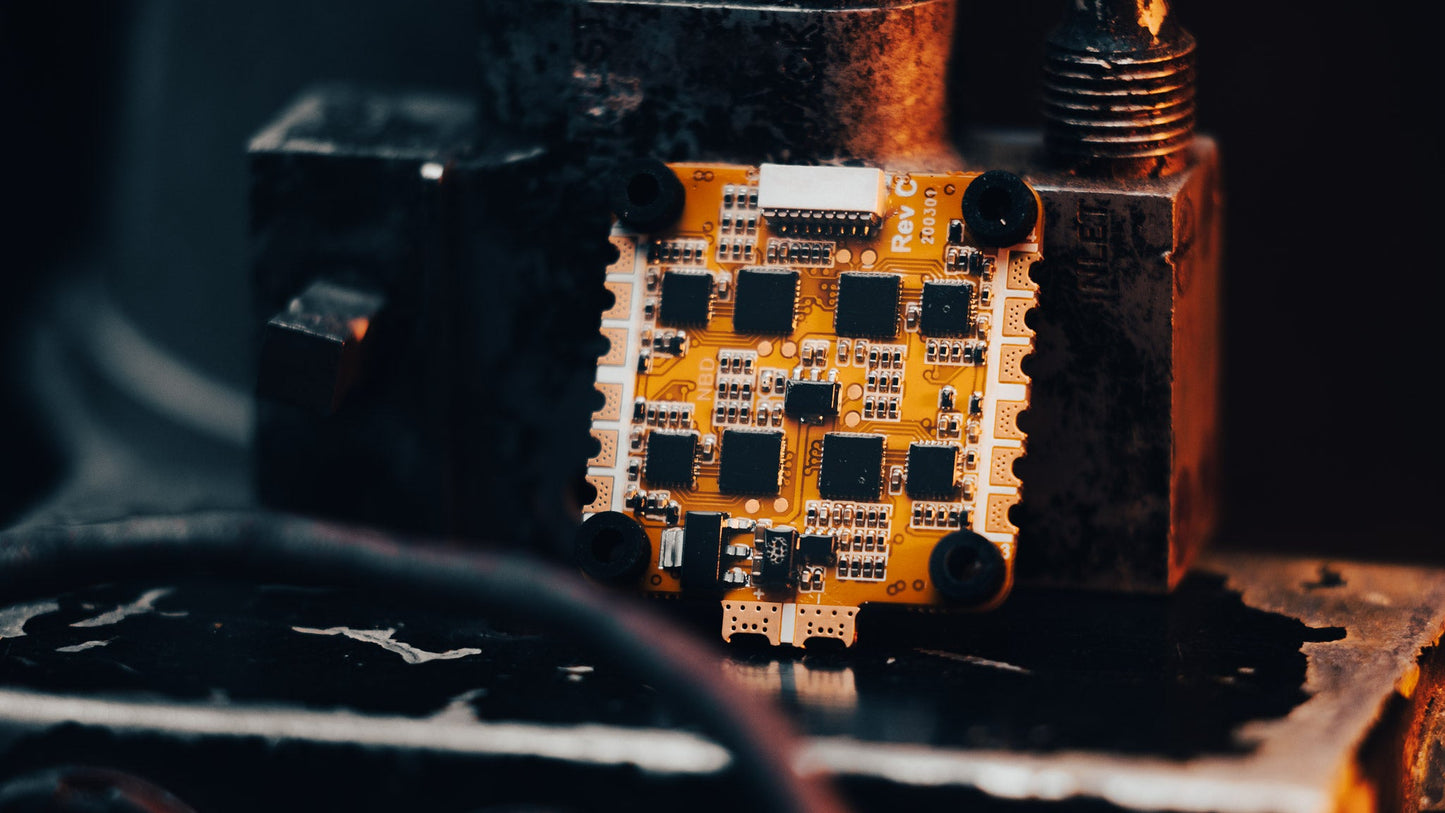

This is the big brother to the NBS Infinity 200 4-in-1 ESC - all the same goodness but for a 30x30mm stack.  It takes up to 6S, kicks out 45A (bursting to 55) and runs BLHeli32. Plus the FETs are protected under a heatsink and its got programable LED in each corner... yes you heard, LEDs!

If you are after a super neat, easy to build stack, pair this with the NBD Infinity FC305.



Specs:

  • LiPo Power input: 3S-6S
  • ESC Programming: BLHeli32
  • Cont.Current: 45Ax4
  • Burst Current: 55Ax4
  • Weight / Size: 15.0g / 41x37.5x6mm
  • Mounting holes: 30x30mm
  • Signal plug JST1.0 8pin plug with NBD Infinity305FC
  • Solder pad ready for signal and power
  • Heatsink design
  • 8 Layer PCB with 2Oz Copper
  • BLHeli32 Programable Sided RGB LED x4
  • Smoov performance design by Team NBD

Includes:

  • 1x Infinity305 4 in 1 ESC BLHeli32
  • 4x Grommets short 4x Grommets Long
  • 5x Steel Screw 25mm
  • 13x Nylon Lock nut
  • 1x Infinity305 FC to Infinity305 ESC cable 30mm
  • 1x Infinity305 FC to Infinity305 ESC cable 50mm
  • 1x Infinity305 FC to Infinity305 ESC cable 85mm
  • 470uf 35v Electrolytic capacitor
