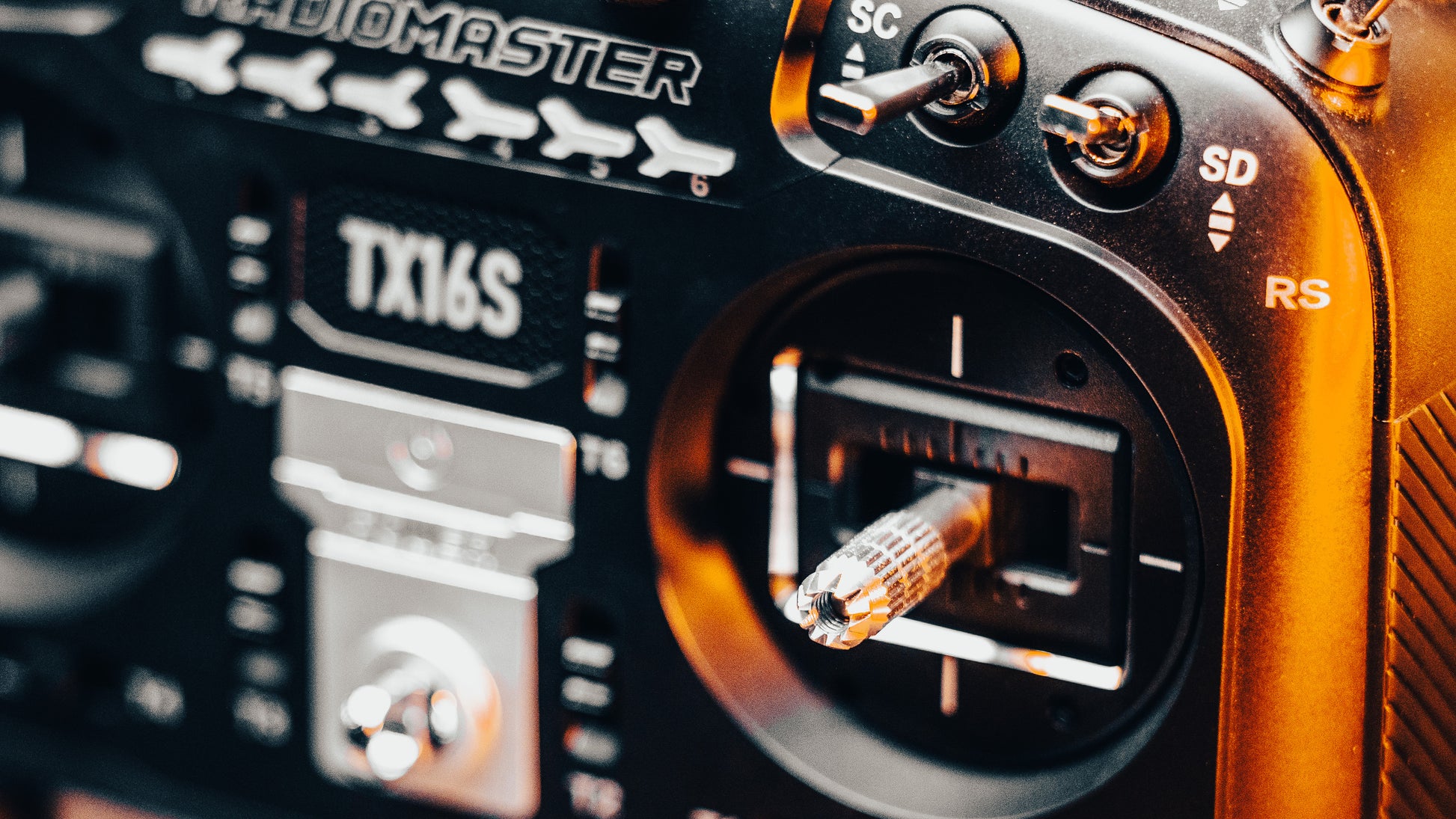

RadioMaster T16S MkII (4-in-1 and ELRS)

Regular price £179.90
Regular price Sale price £179.90
Shipping calculated at checkout.
Transmitter type

The original T16S from RadioMaster is one of the most popular radios around, taking the crown from the old faithful FrSky Taranis.

This is everything racers and freestylers need in a well built package. There's even a big colour touch screen and switches galore in case you also fly something with more modes or even fixed wing.

Not everyone needs or wants the fancy leather and carbon trim of the MAX versions on their radio - they just want a workhorse at a good price and that's where the standard model of the T16S comes in. All the important guts are the same, including the v4.0 Hall effect gimbals, the bog touch screen, the software and the internal electronics.

New in the Mark 2:

RadioMaster took everything that was good about the original T16S and made it all just that little bit better by adding or upgrading the following:

Improved internal circuity and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear mounted audio jack provided headphone output.
V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
Interchangeable high/low rear grips included for a comfy grip.
Improved S1/S2 knobs with clear centre-detents.
Improved LS/RS Sliders with smoother feel and better centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalised mods.
Improved internal plastics for better longevity.



Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401) or Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent) or Internal ELRS : Max 250mw (transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) or ELRS (ELRS version)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 x 272
Gimbal: V4.0 Hall sensor
Module Bay: JR compatible module bay for your Ghost, Tracer or Crossfire modules etc.
Upgrade method: Supports USB-C online / SD card offline upgrade



1x Radiomaster TX16S  with V4 Hall Effect Gimbals Transmitter
1x High Density Foam Case
1x Pair Of Flat Grips
1x Pair of Raised Grips

1x USB Cable
1x 18650 battery tray
1x RadioMaster keyring
1x Screen protector
1x RadionMaster sticker sheet
