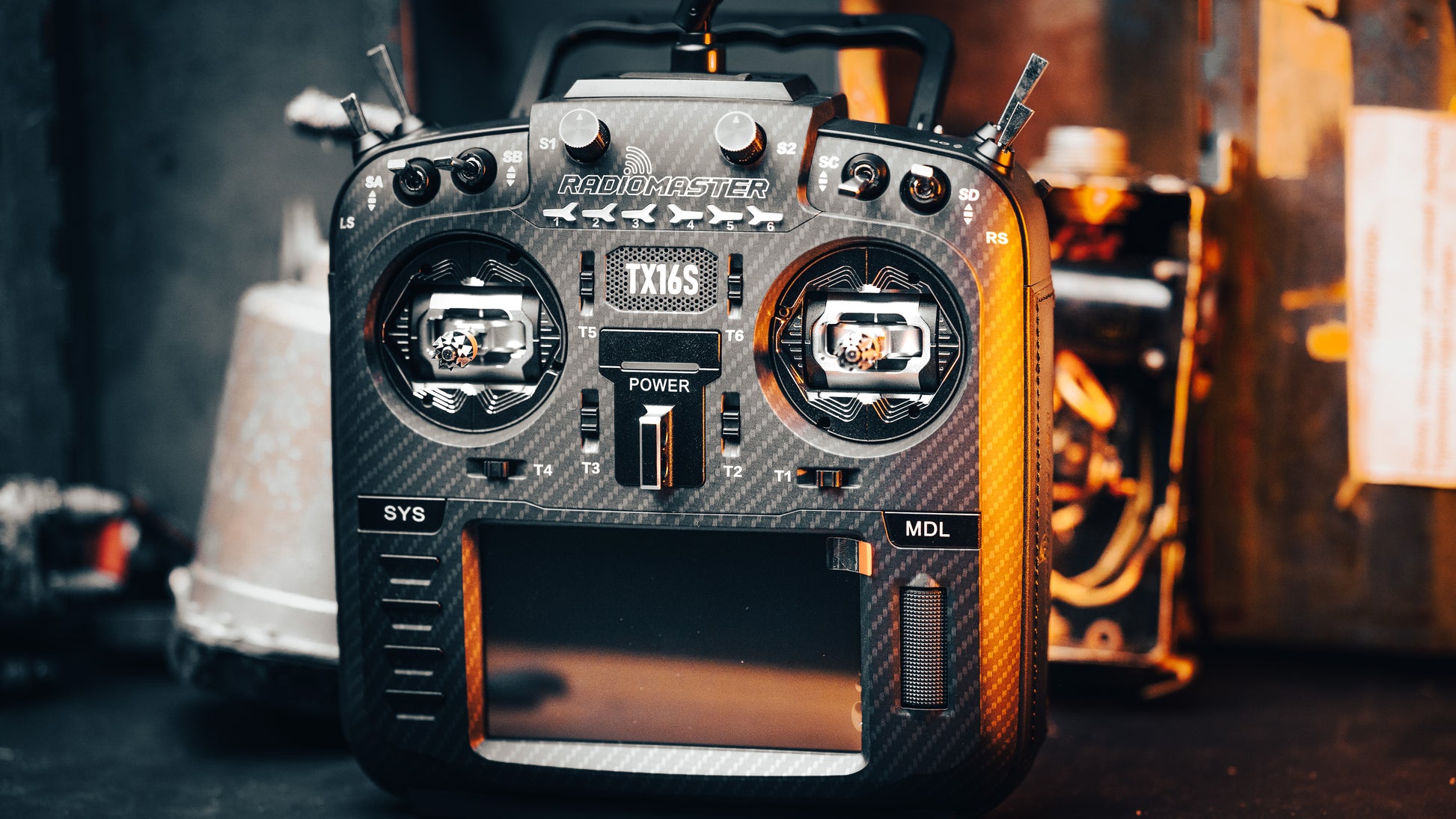

RadioMaster T16S MkII V4 MAX with AG01 CNC
The original T16S from RadioMaster is one of the most popular radios around, taking the crown from the old faithful FrSky Taranis.
This is everything racers and freestylers need in a well built package. There's even a big colour touch screen and switches galore in case you also fly something with more modes or even fixed wing.
And incase the MAX version just isn't max enough for you, this model comes with the AG-01 CNC all metal gimbals: Fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning.
What does the MAX version get you?
The internals are all the same as the standard version but with the MAX you get some nice little upgrades including:
CNC annodised aluminium parts (Buttons, slider, gimbal surround)
Carbon fibre effect fascia
Leather side grips
New in the Mark 2:
RadioMaster took everything that was good about the original T16S and made it all just that little bit better by adding or upgrading the following:
Improved internal circuity and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear mounted audio jack provided headphone output.

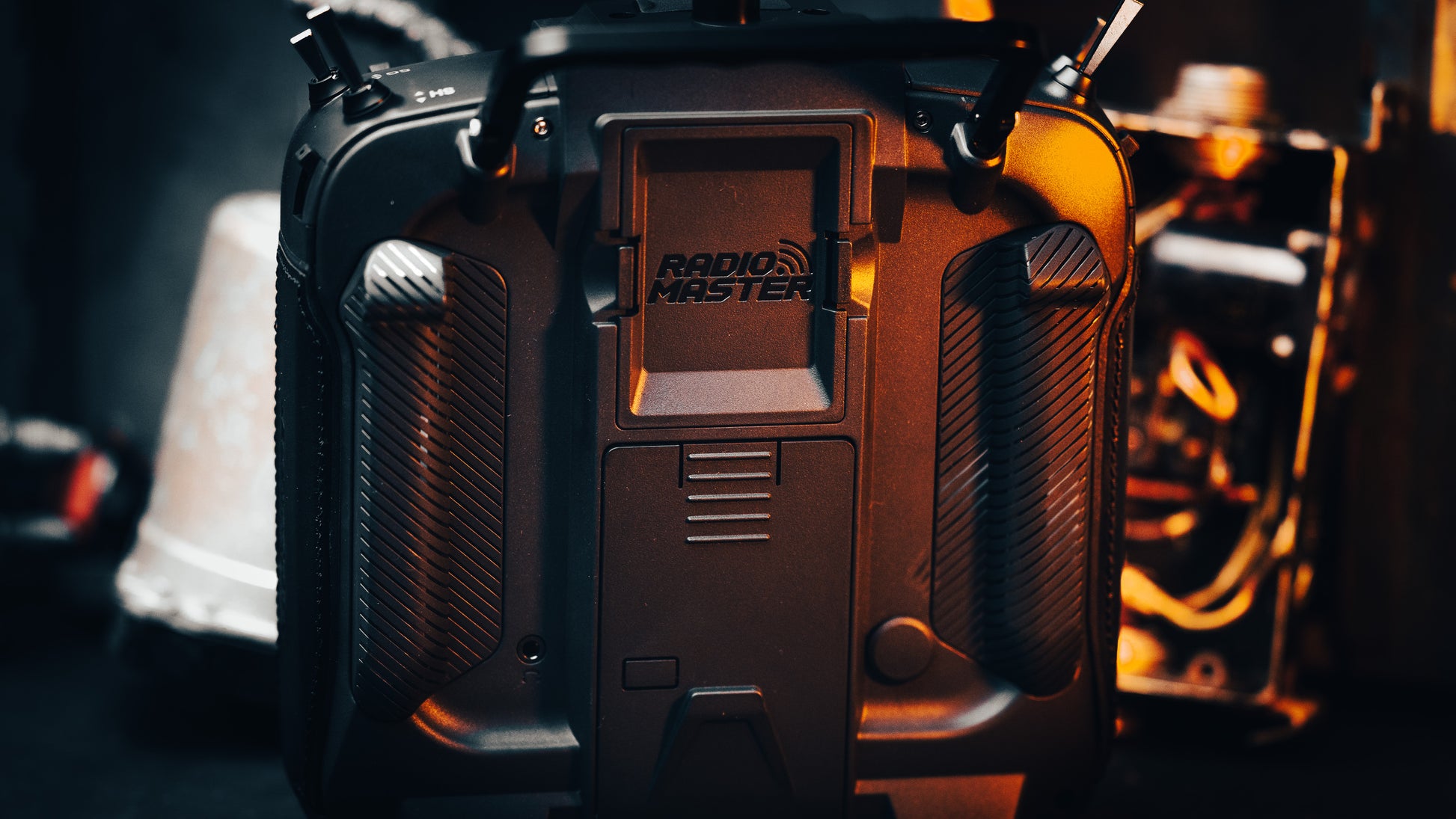

Interchangeable high/low rear grips included for a comfy grip.
Improved S1/S2 knobs with clear centre-detents.
Improved LS/RS Sliders with smoother feel and better centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalised mods.
Improved internal plastics for better longevity.
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401) or Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent) or Internal ELRS : Max 250mw (transmitting power is adjustable)
Carbon fibre effect facia with colour matched surrounds and buttons
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 x 272
Gimbal: AG01 CNC Hall effect Gimbals
Module Bay: JR compatible module bay for your Ghost, Tracer or Crossfire modules etc.
Upgrade method: Supports USB-C online / SD card offline upgrade
1x Radiomaster TX16S MKII MAX with V4 Hall Effect Gimbals Transmitter
1x High Density Foam Case
1x Pair Of Flat Grips
1x Pair of Raised Grips
1x USB Cable
1x 18650 battery tray
1x RadioMaster keyring
1x Screen protector
1x Transmitter lanyard
1x RadionMaster sticker sheet
