T-Motor Pacer F7 Single Sided Flight Controller

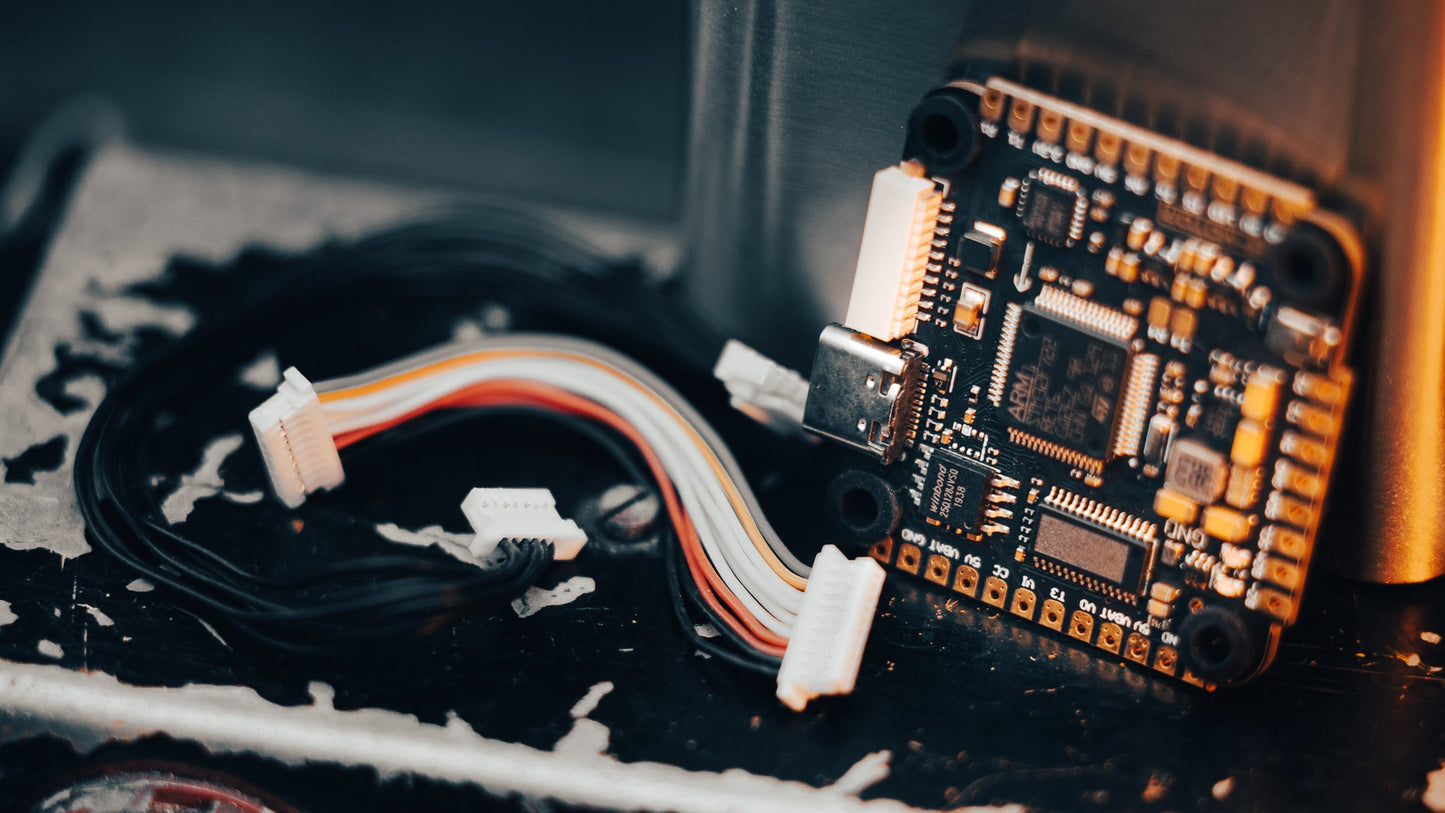

For those who like low profile, T-Motor's Pacer F7 flight controller has a single-sided design, which means a shorter overall stack. It also supports the DJI Air Unit with a simple plug and play connection using the included cable.

Soldering to the board is easier than ever thanks to the enlarged pads which are intuitively distributed around the edge of the FC - or use the direct connection to easily hook up a T-Motor V45, P50, or P60 4-in-1 ESC.

Specs:

• Enlarged solder pads on edge, easy connection
• Build-in OSD chip supports BF OSD function
• 6 x Hardware UARTs
• 3-6S lipo direct input
• Onboard 5V 3A BEC
• Support camera control function
• Build-in 128Mbit/16MByte flash for black-box function
• Built-in LC filter, filter power noise, and supply clear picture
• Direct plug with F45A 2.0, F55A Pro II，V45A，P50AP60A 4in1 ESC (T-Motor 4in1 ESC)
• 5x 10V Power pad(2x Top and 3x Bottom), to power Video devices(only available when T-Motor 4-in-1 ESC w/ 10V BEC is connected)
