TBS Unify PRO Nano 5G8

Regular price £18.90
Regular price Sale price £18.90
ON SALE SOLD OUT
Shipping calculated at checkout.

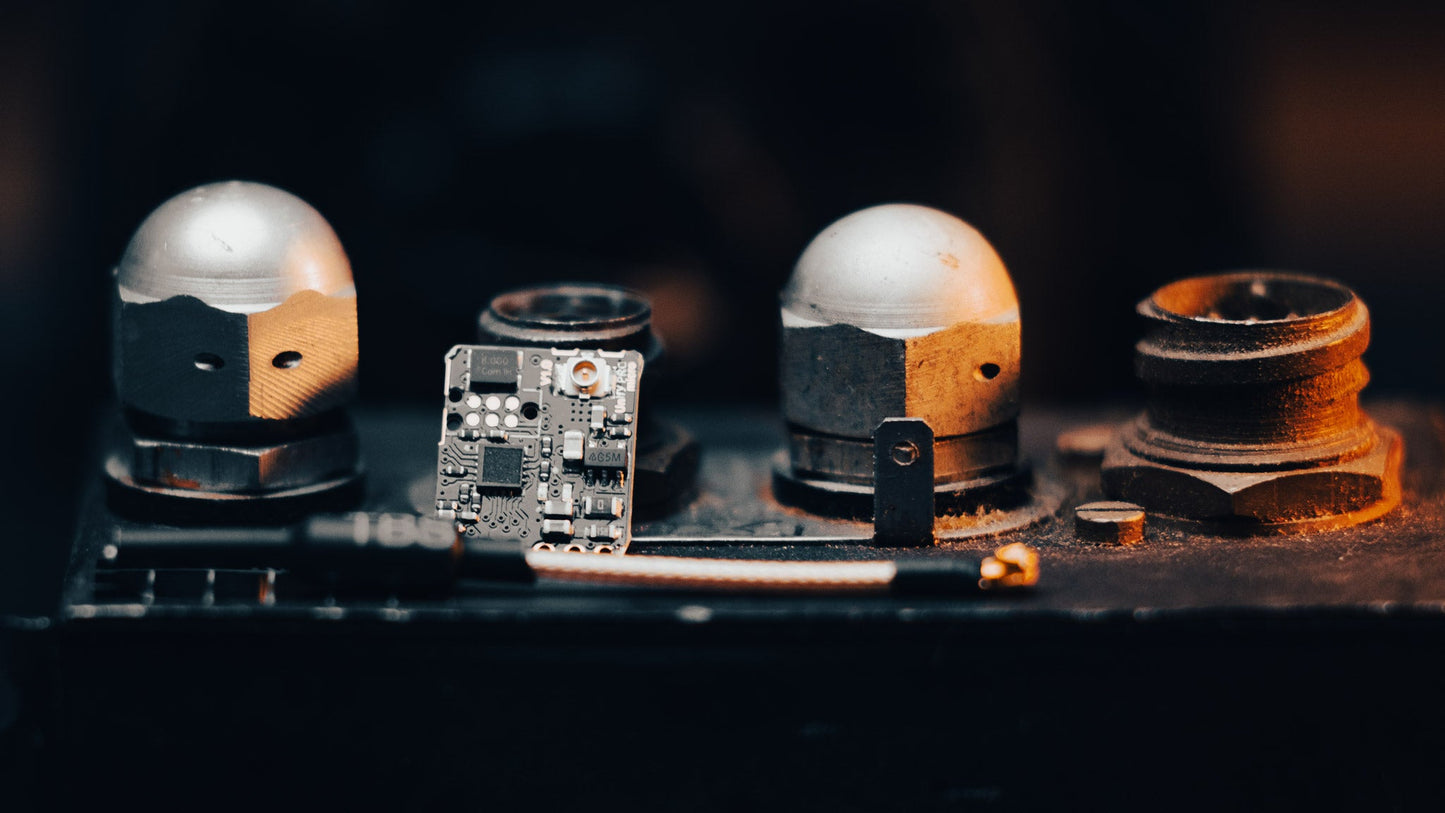

The world's smallest FPV video transmitter with 25mW / 50mW power levels, Smart Audio and u.FL

As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.



Specs:

  • Input Voltage: 4.5V - 5V ONLY
  • Power levels: 25mW / 50mW
  • Interface: SmartAudio and capacitive button (or solder external tactile button separately - included!)
  • Weight: 1.4g (incl. antenna)
  • Size: 13.2mm x 14.6mm
  • Antenna connector: u.FL (upgraded)
  • Antenna length: 45.6mm (end to end)
  • TBS Tech: Smart Audio, Clean Switch

Includes:

  • 1x Unify Pro nano 5G8 VTX
  • 1x button switch
  • 1x TBS UNIFY PRO 5G8 Linear Antenna
  • 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
